Enter Setup Channels (Channels 201—211)

Refer to BaleTrak™ Pro and Plus Monitor-Controller Channels in this section for a list and description of the setup channels.

E84265-UN-28AUG17

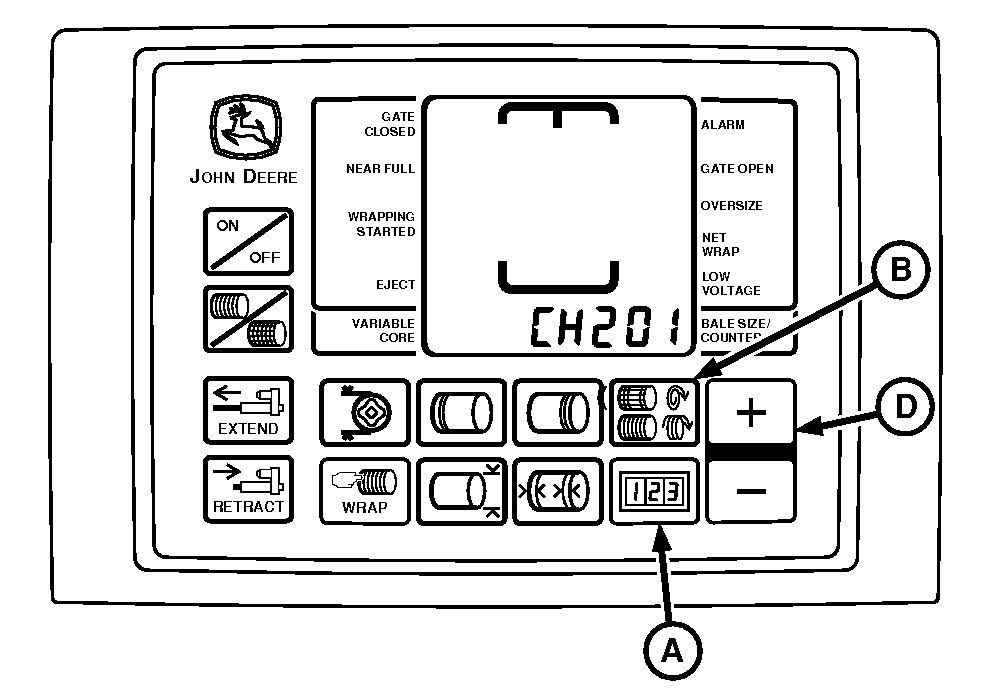

BaleTrak™ Pro Monitor

E84266-UN-28AUG17

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

1. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

2. Access the Baler Model Channel 201 as follows:

   1. On the BaleTrak™ Pro Monitor, press and hold the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

   2. On the BaleTrak™ Plus Monitor, press and hold the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

   3. Verify that CH201 is displayed on the monitor.

3. Release both keys. The baler model number is shown in the digital display. Verify that the number shown is correct. If the model number shown is not correct:

   1. Press the PLUS key (D) or the MINUS key until the correct model number is shown.

   2. Turn the monitor-controller OFF to enter the setting into memory.

   3. Turn the monitor-controller ON. The baler model appears for approximately 2 seconds. Verify that the model number is correct.

4. Press and hold the COUNTER key and press the PLUS key (D) until the desired channel is shown in the display. Release the keys to see the current value for this channel.

5. To change the current setting in the selected channel, use the PLUS key or the MINUS key.

6. If any settings are changed, turn the monitor-controller OFF to enter the new settings into memory.

7. Turn the tractor ignition key to the OFF position and remove the key.
