Twine Feature (Channel 202)
(Turning On and Off)

E84585
E84585-UN-14SEP17

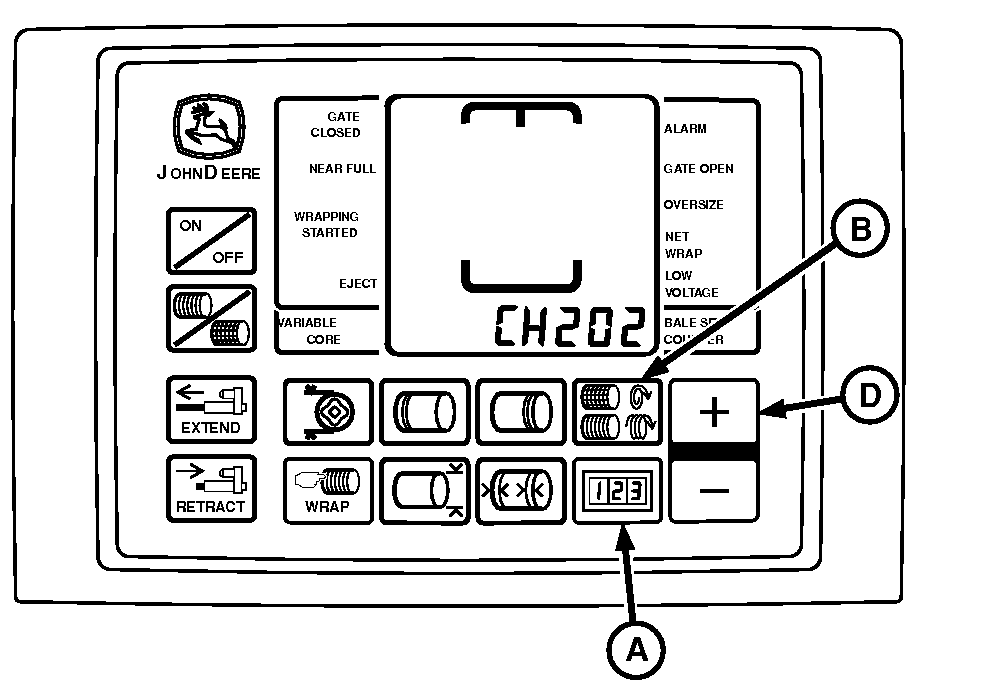

BaleTrak™ Pro Monitor

E84266
E84266-UN-28AUG17

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

The twine feature can be turned OFF or ON by accessing Channel 202.

The baler model number displayed on the monitor must match the current baler model number. The twine or net wrap application, slip clutch alert, and optional variable core features only operate correctly when the model numbers match.

If both the twine and the net wrap features are turned OFF, the monitor considers the twine feature ON.


Turning Feature On and Off:

  1. Turn the tractor ignition key to the ON position. Do not start the tractor.

  2. Access the setup channels as follows:

    1. BaleTrak™ Pro Monitor: Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

    2. BaleTrak™ Plus Monitor: Press and hold both the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

    3. Verify that CH201 is displayed on the monitor.

  3. Release both keys. The baler model number is displayed. Verify that the correct model number is shown.

  4. Press and hold the COUNTER key and press the PLUS key (D) until CH202 is displayed.

  5. Release the keys. Check the value displayed.

    1. When the value is 0, the twine mode is OFF.

    2. When the value is 1, the twine mode is ON.

  6. If necessary, press the PLUS or MINUS key and change the setting.

  7. To enter the setting into memory, turn the monitor-controller OFF .

  8. Turn the monitor-controller ON and verify the baler model number. The model number is displayed for approximately 2 seconds. If the model number displayed is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

  9. Turn the tractor ignition key to the OFF position and remove the key.
