Set Sensor Type (Channel 211)

E84593-UN-14SEP17

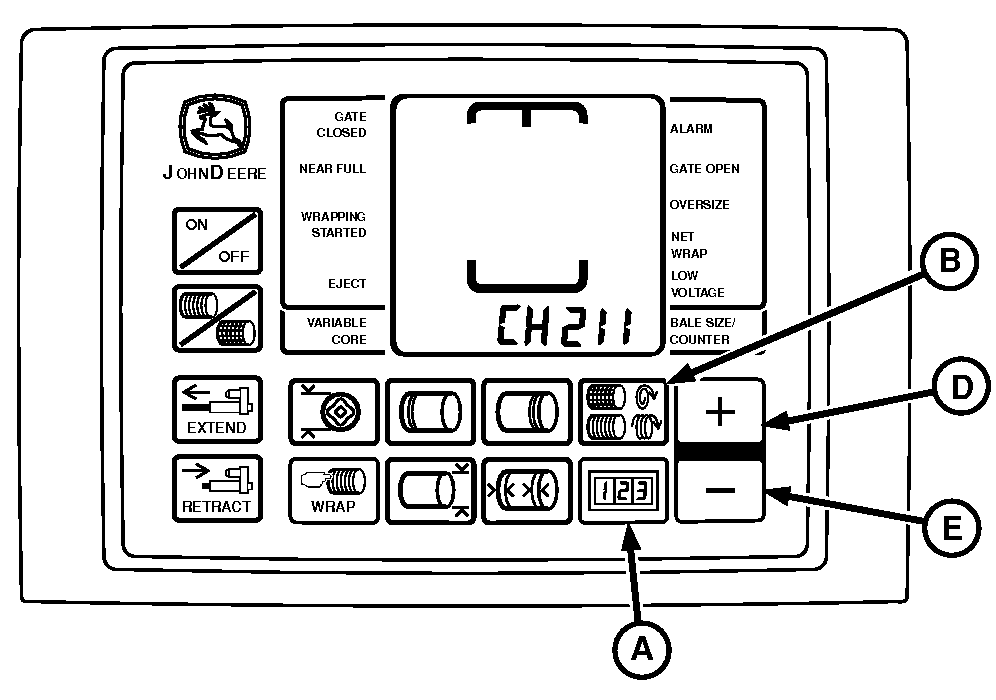

BaleTrak™ Pro Monitor

E84594-UN-26SEP17

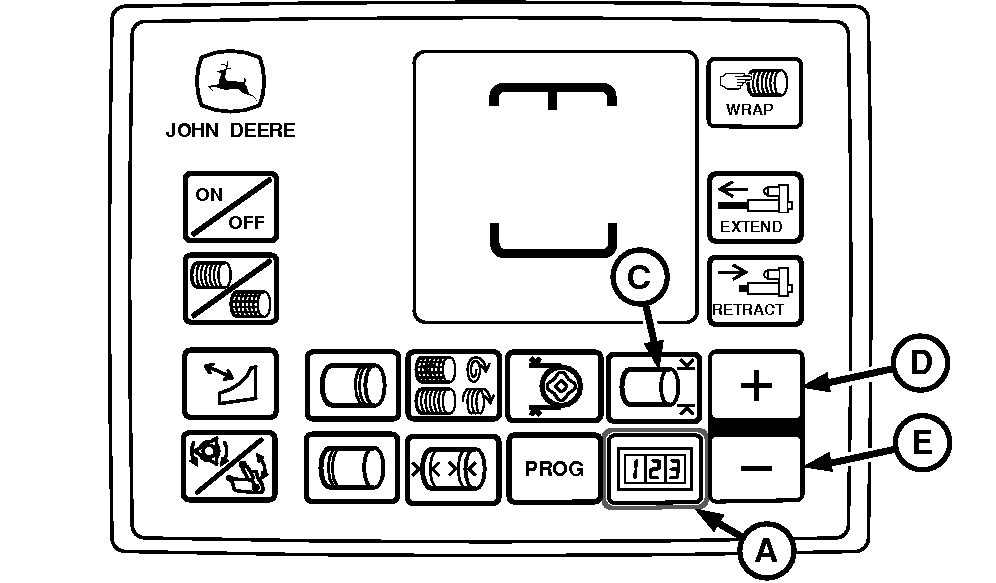

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

E - MINUS Key

1. Turn the tractor ignition key to the ON position. Do not start the tractor.

2. Access the setup channels as follows:

   1. BaleTrak™ Pro Monitor: Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

   2. BaleTrak™ Plus Monitor: Press and hold both the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

   3. Verify that CH201 is displayed on the monitor.

3. Release both keys. The baler model is displayed. Verify that the model number is correct.

4. Press and hold the COUNTER key and press the PLUS key (D) until CH211 is shown in the display.

5. Release the COUNTER key.

6. Check the setting that appears on the monitor. If necessary, press the PLUS key (D) or the MINUS key (E) and change the setting for the sensor type used on this machine.

   • Set the displayed value to 0 if equipped with the old style sensors.
   • Set the displayed value to 1 if equipped with the new style sensors.



7. To enter the setting into memory, turn the monitor-controller OFF.

8. Turn the monitor-controller ON and verify the baler model number. The model number is displayed for approximately 2 seconds. If the baler model displayed is incorrect, change the model number. (See BALER MODEL PROGRAM (CHANNEL 201) in this section.)

9. Turn the tractor ignition key to the OFF position and remove the key.
