Test Liquid Crystal Display (LCD) Panel (Channel 020)

E52529
E52529-UN-10JUN08

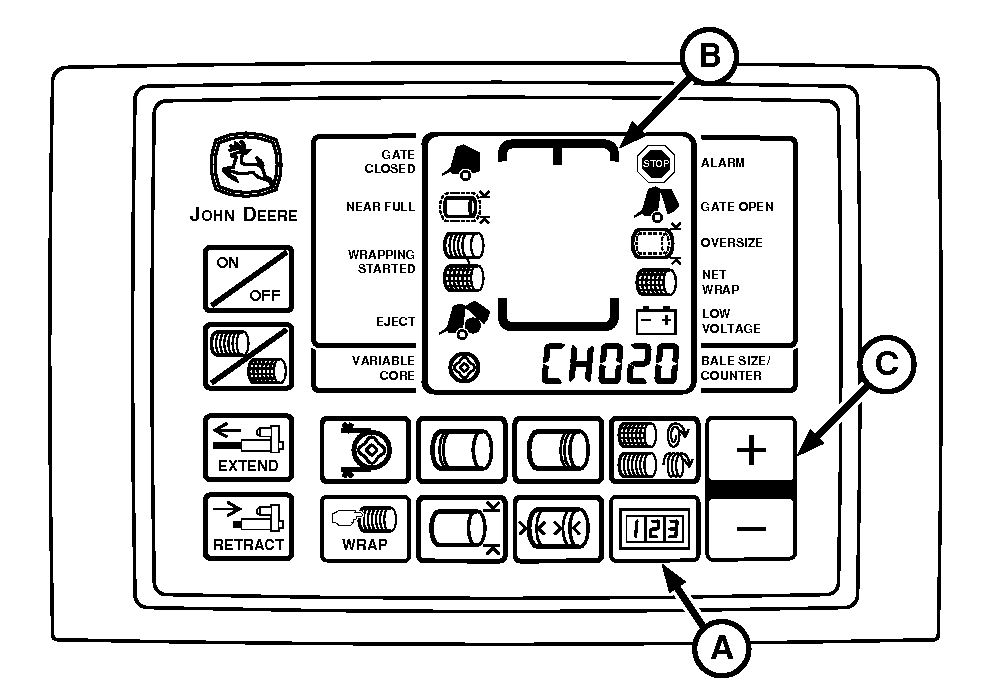

BaleTrak™ Pro Monitor

E84257
E84257-UN-30AUG17

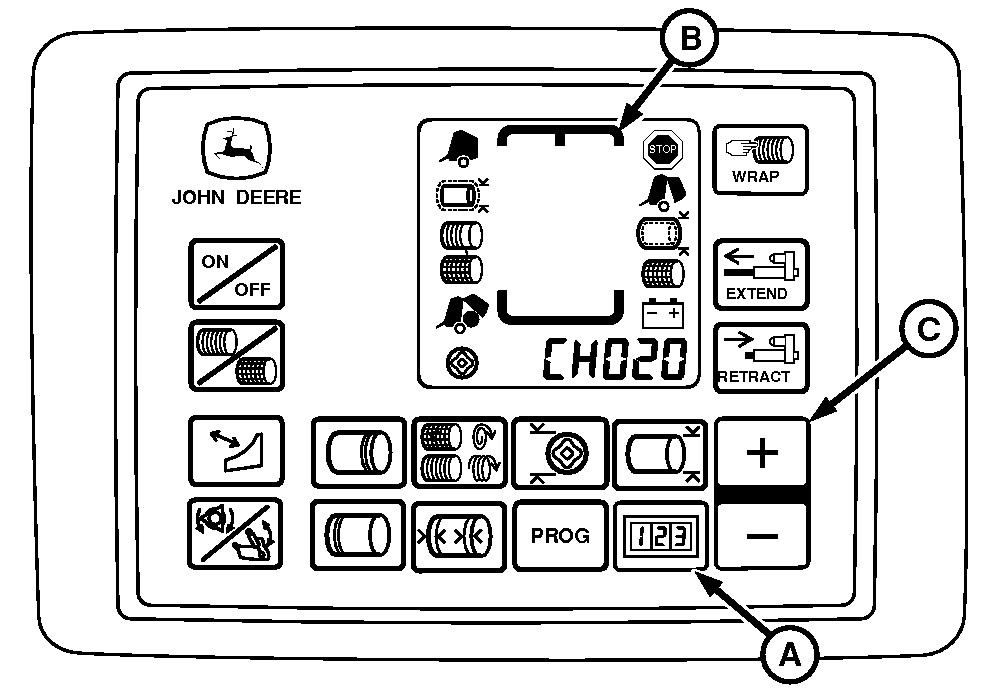

BaleTrak™ Plus Monitor

A - COUNTER Key

B - LCD Panel

C - PLUS Key

Use the following test procedure to check if a segment of the LCD panel has failed.

  1. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  2. Press and hold the COUNTER key (A) while pressing the TWINE or NET key to turn the monitor-controller ON.

  3. Continue to hold the COUNTER key and press the PLUS key (C) until CH020 appears in the digital display.

  4. The number of bale shape indicator bars displayed is 24 bars per side.

    Release the keys and view the entire LCD panel (B). Make sure that all segments and indicators are displayed. If not, see your John Deere dealer.

  5. Turn the monitor-controller OFF. Turn the tractor ignition key to the OFF position and remove the key.

DP99999,0000E16-19-20170905
