Variable Core Operation (Channel 208)
(Turning On and Off)

The optional variable core operation can be turned OFF and ON by accessing channel 208.

The model number displayed on the monitor must match the baler model number. The twine or net wrap application, slip clutch alert, and optional variable core features only operate correctly if the numbers match.


Turning Feature On and Off:

E84591
E84591-UN-14SEP17

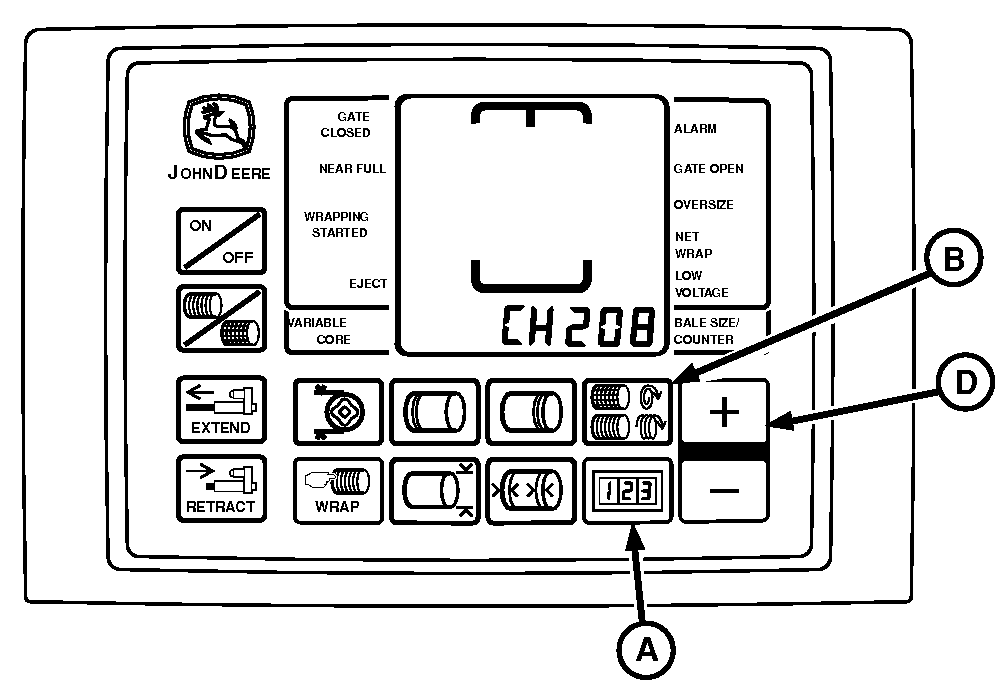

BaleTrak™ Pro Monitor

E84266
E84266-UN-28AUG17

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

  1. Turn tractor ignition key to the ON position. Do not start the tractor.

  2. Access the setup channels as follows:

    1. BaleTrak™ Pro Monitor: Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

    2. BaleTrak™ Plus Monitor: Press and hold both the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

    3. Verify that CH201 is displayed on the monitor.

  3. Release both keys. The baler model number is displayed. Verify that the model number is correct.

  4. Press and hold the COUNTER key and press the PLUS key (D) until CH208 is displayed.

  5. Release the COUNTER key.

  6. Check the status of the variable core feature. To change the status:

    1. To turn the feature OFF, press the MINUS key to change the displayed value to 0.

    2. To turn the feature ON, press the PLUS key to change the displayed value to 1.

  7. To enter the setting into memory, turn the monitor-controller OFF.

  8. Turn the monitor-controller ON and verify the baler model number. The model number is displayed for approximately 2 seconds. If the baler model number displayed is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

  9. Turn the tractor ignition key to the OFF position and remove the key.
