Monitor Display for B-Wrap Baling

1.

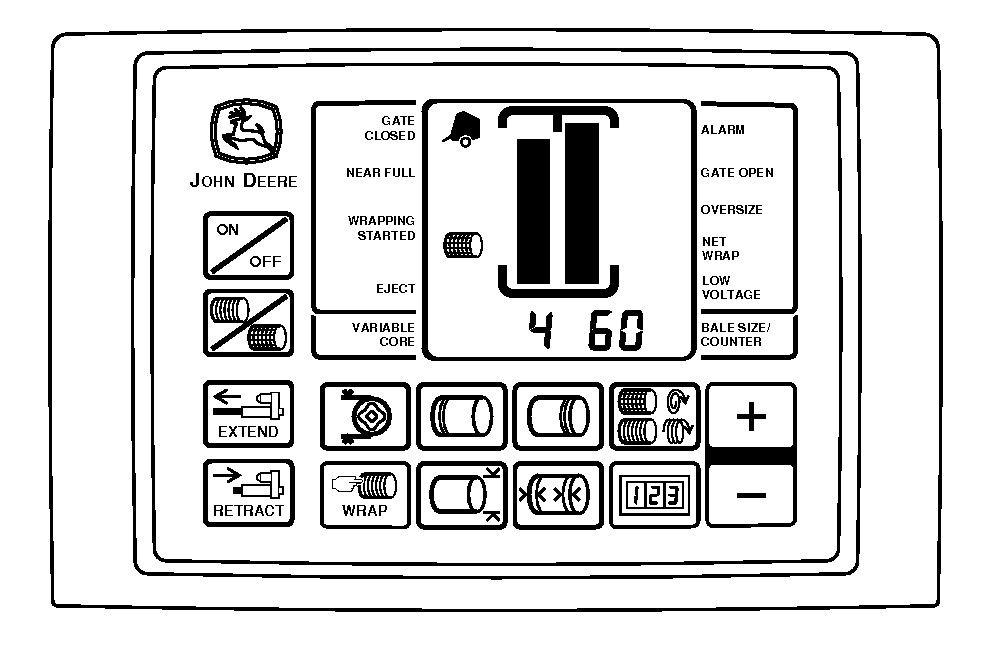

   E83897-UN-02AUG17

   BaleTrak™ Pro Monitor Display

   The bale shape bars, near-full alarm, full-size alarm, and bale eject icons on the monitor display function as normal.

---




2. Stop forward movement (baling) when monitor signals a full bale (1524 mm [60 in]).

3. The B-wrap application cycle is automatic. The monitor displays a series of numbers showing that B-wrap material is feeding into the baler:

   • 1 — B-wrap actuator is starting to extend
     (changes quickly).
   • 2 — B-wrap is feeding.
   • 3 — Sensor sees the start of the metal tape (changes quickly).
   • 4 — Sensor sees the end of the metal tape.
   • 5 — B-wrap actuator is starting to retract.
   • 6 — B-wrap cut-off.
   • 7 — Start of audible alarms for bale ejection.



4. After the B-wrap application cycle is complete, the monitor-controller sounds a series of four audible alarm beeps. The fourth beep is a longer tone.

   1. Disengage the PTO during the fourth alarm beep to position the bale for ejection.

   2. If the PTO is not disengaged during the first alarm cycle, the alarm cycle starts again.

      The system eventually times out and shows error code 213.

5. The bale-eject icon on the monitor-controller display lights.

   1. Back up the baler.

   2. Eject the bale.

   3. Pull forward.

   4. Close the gate and engage the PTO.

6.

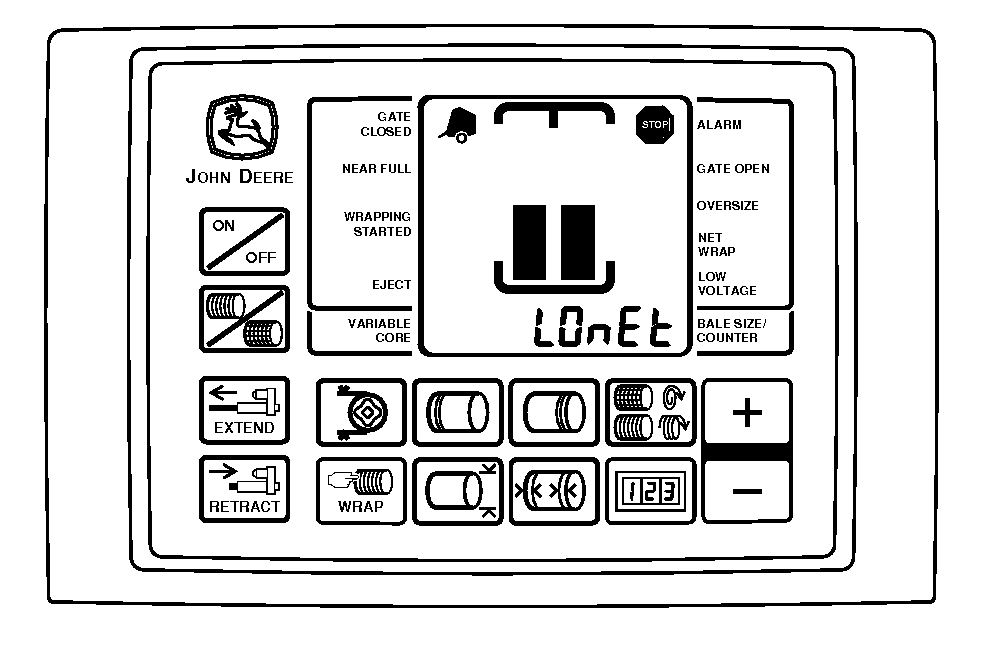

   E69426-UN-25FEB13

   LOnEt is displayed on the monitor when the last segment of material on the roll has been used.

   Stop the baler and load a new roll of material.

---
