Adjust Main PTO Driveline Slip Clutch (MegaWide Plus and Regular Pickup)

1. Dirt can become trapped between the pressure plate and the disk spring, preventing the disk spring from flattening. Disassemble the clutch and clean dirt from between the pressure plate and the disk spring. Damage to the baler can occur if the clutch cannot slip when necessary.

   If the distance between the rear plate and the tab on the pressure plate is outside the specifications, the slip clutch can either not slip or can slip too easily. Damage to the drive components can occur if the clutch cannot slip.

   Failure to follow the order of the following steps can damage the clutch.

   The clutch can be adjusted while on the machine.

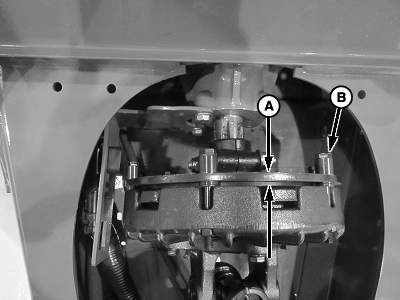

   E83431-UN-08JUN17

   540 rpm Bracket Assembly Shown

   A - Distance

   B - Cap Screw

   Using tractor hydraulics, raise the gate fully to slacken the belts.

---




2. Turn off the tractor engine and remove the key.

3. Lock the gate.

4. Disconnect the PTO driveline from the tractor.

5. Measure distance (A).

   Rear Plate-to-Tab on Pressure Plate	Distance	4.7—7.1 mm (0.185—0.280 in)

6. If distance (A) exceeds specification, perform the following:

   1. Remove one cap screw (B) from clutch.

   2. Remove one washer between the rear plate and the clutch housing.

   3. Install the washer between the head of the cap screw (B) and the rear plate.

   4. Tighten the cap screw.

   5. Repeat steps a—d for the remaining five cap screws.

7. If distance (A) is less than specification, perform the following:

   1. Remove one cap screw (B) from the clutch.

   2. Remove one washer between the head of the cap screw (B) and the rear plate.

   3. Install washer between the rear plate and clutch housing.

   4. Tighten cap screw.

   5. Repeat steps a—d for the remaining five cap screws.

8. Measure distance (A). If the distance is still not within specification, and there are no washers between the rear plate and the housing, replace the clutch friction disk.

9. Unlock and the lower the gate.
