Adjust Pickup Drive Chains
(MegaWide™ Plus Pickup)

To ensure that all slack is removed from chains;

• Close gate and engage PTO a few seconds.
• Stop tractor engine and remove key.

1. Open side doors.

2.

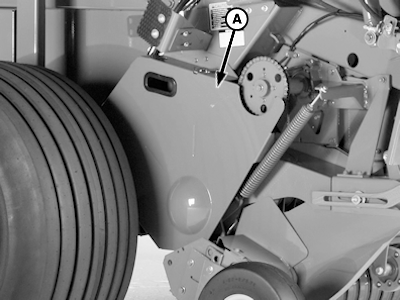

   E66876-UN-24JUL12

   A - Shield

   Right-Hand Side;

   1. Remove shield (A).

   ---




   2.

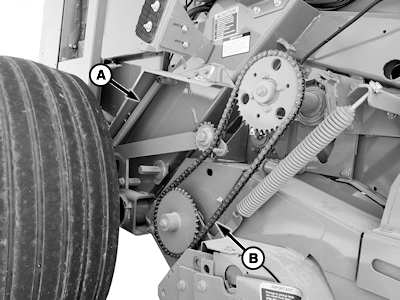

      E66863-UN-24JUL12

      A - Idler Spring

      B - Chain

      Check distance between hooks on spring (A). If distance is less than specifications remove one link from chain (B).

      Idler Spring Hook-to-Hook	Distance	384 mm (15-1/8 in)

   ---




   3.

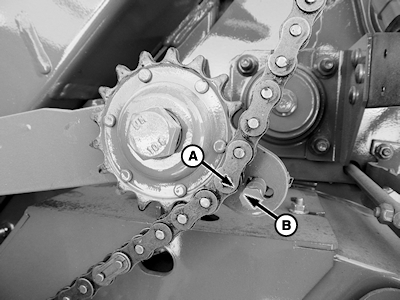

      E67412-UN-28AUG12

      A - Chain

      B - Chain Retainer

      Check distance between the chain (A) and chain retainer (B). If distance is not within specifications, adjust chain retainer.

      Chain-to-Chain Retainer	Distance	3—6 mm (1/8—1/4 in)

   4. Install shield.

---




3.

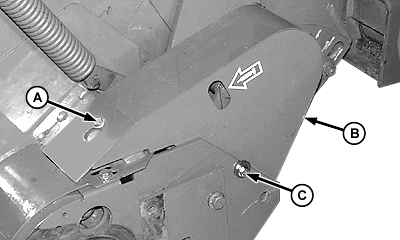

   E48160-UN-24JUL00

   A - Cap Screw

   B - Shield

   C - Cap Screw

   Left-Hand Side;

   1. Loosen cap screws (A) and (C).

   2. Lift on the rear of shield (B) and slide toward the front of the machine to remove.

   ---




   3.

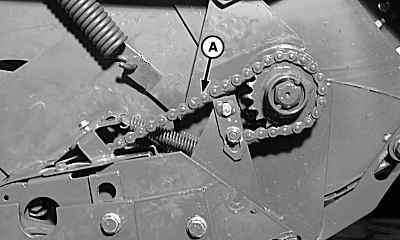

      E85612-UN-21NOV17

      A - Drive Chain

      If the bottom of chain is contacting top of chain, remove one link from chain (A).

   4. Install shield and tighten cap screws.

---




4. Close side doors.
