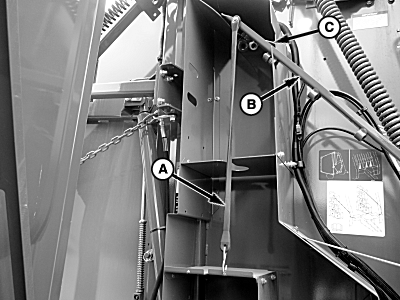

E83968-UN-31JUL17
A - Strap
B - Twine Guide Arm
C - Notch
Place twine ball into lower shelf.
-
Disconnect the rubber strap (A) from the lower shelf.
-
Remove the twine guide arm (B) from notch (C). Rotate the arm
down to thread the twine.
-

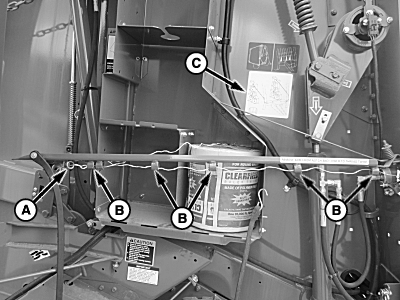

E83969-UN-31JUL17
Right-Hand Twine Box
A - Guide, Porcelain
B - Guide (6 used)
C - Label
Route the twine through porcelain guide (A) and guides (B).
A twine threading label (C) is located near the twine box.
-

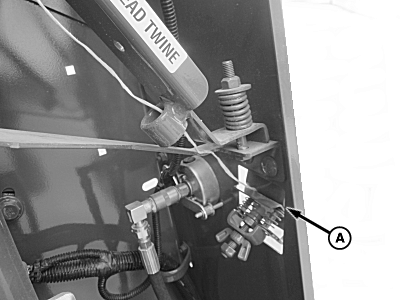

E83970-UN-31JUL17
A - Tension Plates
Insert the twine between the tension plates (A) on the front
panel and pull it out through the front side.
-

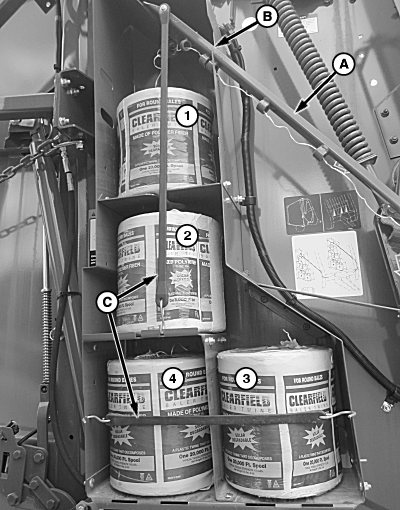

E83971-UN-31JUL17
A - Twine Guide Arm
B - Twine Box Notch
C - Strap (2 used)
Rotate the twine arm (A) upward and into the twine box notch
(B).
-
Move the twine ball from the lower shelf to the top shelf in
the twine box.
-
Fill the empty shelves with twine.
-
Attach the retainer straps (C) as shown.
-
Ensure that the proper knot is used according to the type
of twine. (See Tie Twine Balls in this section.)
Connect the twine balls as follows:
-
Tie the outside twine end from twine ball number 1 to the center
twine end of ball number 2.
-
Tie twine ball number 2 to twine ball number 3.
-
Tie twine ball number 3 to twine ball number 4.
-
Check that the twine moving indicator wheel (A) is free
to spin without twine.

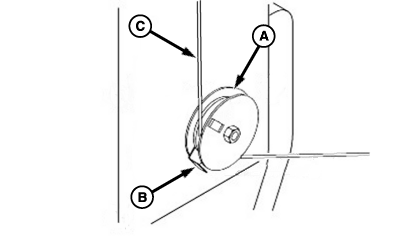

E85668-UN-27NOV17
A - Twine Moving Indicator Wheel
B - Twine Guide
C - Twine
When using plastic twine or small sisal twine, route the
twine (C) through the twine guide (B) and a FULL turn around the twine
moving indicator wheel (A). The twine must route behind the strand
which comes down from the twine box.
-
Wrapping large sisal twine a full turn around the indicator
wheel can cause the twine to cling to itself and break, or cause excessive
twine tension.

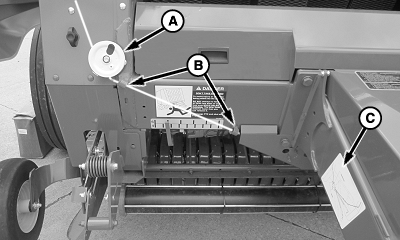

E83973-UN-31JUL17
A - Twine Moving Indicator Wheel
B - Twine Guides
C - Twine Threading Label
When using large sisal twine, route twine around the twine
moving indicator wheel (A) approximately one-quarter turn as shown.
-
Route the twine through guides (B).
A twine threading label (C) is on the right-hand side of the
tongue.
-
Avoid crushing, the twine arms can move unexpectedly.
Keep hands out of the twine arm path. Turn off power BEFORE servicing
or adjusting twine arms or twine cutter mechanism.
Stay
out of the path of twine arms at all times when power to twine arms
is ON.

E47598-UN-07JAN00

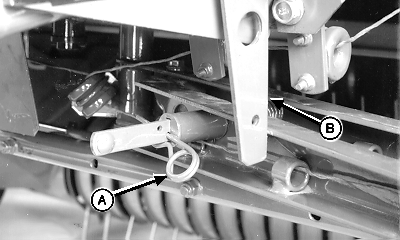

E40534-UN-19JUN96
A - Spring Pin
B - Twine Arm Stop
Hold the twine arm tubes together and remove spring pin (A).
Release the twine arm tubes.
-
Lift twine arm stop (B) and move the front twine arm away from
the rear twine arm.
-
Twine spacing linkage removed for illustration purposes
only.

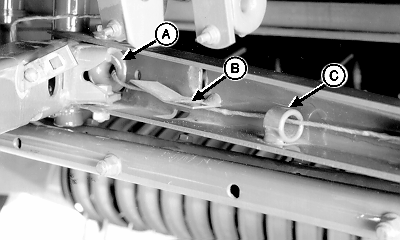

E40533-UN-19JUN96
A - Twine Guide
B - Twine Guide
C - Twine Guide
Route twine through guide (A), under guide (B), and through
guide (C).
-
Remove any crop buildup from tension plate area before
threading twine.

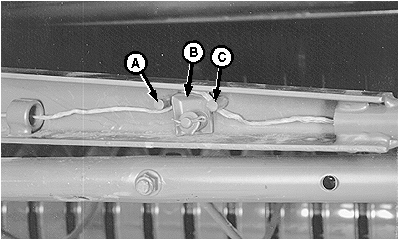

E40128-UN-21JUN96
A - Guide Pin
B - Tension Plate
C - Guide Pin
Route twine under guide pin (A), over the tension plate (B),
and under guide pin (C). Pull on twine to get twine between the plates.
-

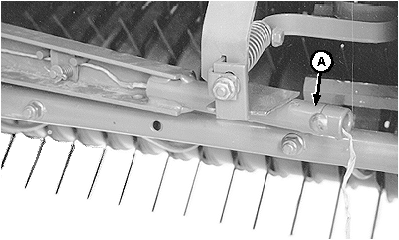

E40129-UN-21JUN96
A - Twine Tube
Pull the twine through twine tube (A). Pull on the twine
to remove the slack between guides. Twine tension must meet specifications
with the twine perpendicular to the twine arm. To adjust twine tension,
see Adjust Twine Tension in Operating the Baler section.
| | |
|
Twine Tension | Pull (Force) | 22—45 N (5—10 lbf) |
-
Cut the twine 305—381 mm (12—15 in) beyond the twine tube (A).
-
Install previously removed spring pin in one of the four positions
for desired twine spacing. (See Set Twine Spacing in Operating the
Baler section.)
