Operate Precutter Knives (If Equipped)

Engage Knives

1.

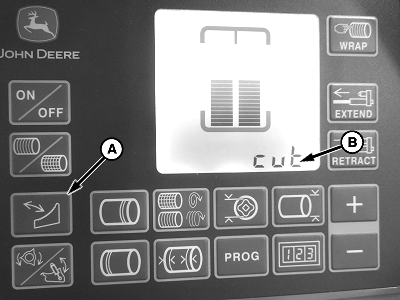

   E82217-UN-14FEB17

   A - Knife Icon

   B - Cut

   Raise the precutter floor.

---




2. Press the knife icon (A) on the display.

3. To engage the knives, operate the pickup SCV lever.

4. When the knives are engaged, “cut” (B) appears on the display.

5. If the knives are engaged, the indicator “c” is displayed next to the current bale diameter on the main baling screen.

   Press the knife icon to return to the main baling screen.

Disengage Knives

1.

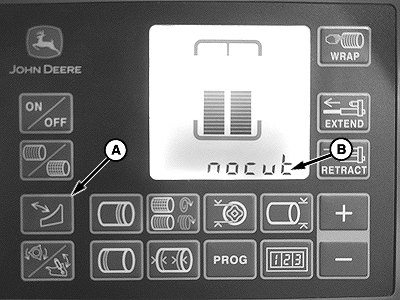

   E82218-UN-14FEB17

   A - Knife Icon

   B - Nocut

   Press the knife icon (A) on the display.

---




2. To disengage the knives, operate the pickup SCV lever.

3. When the knives are disengaged, “nocut” (B) appears on the display.

4. Press the knife icon to return to the main baling screen.

   If the knives are engaged, a “c” is displayed next to the current bale diameter on the main baling screen as an indicator.

   After raising the knives and returning to the main baling screen, the pickup can raise slightly. This raising is normal; monitor the pickup position frequently and lower the pickup as necessary. To help the pickup follow the field terrain, it is recommended to operate the pickup SCV in the float setting.
