Release Net Wrap Brake

1.

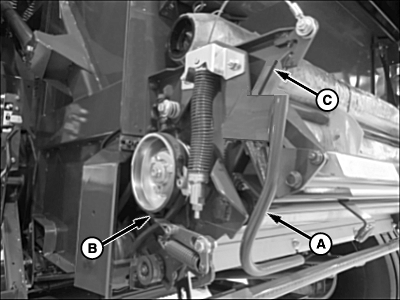

   E83352-UN-06JUN17

   A - Lever

   B - Brake Band

   C - Latch Tab

   Disengage PTO, shut off the tractor engine, and disconnect the monitor-controller power plug from the tractor convenience outlet.

---




2. Open the net wrap cover.

3. Move lever (A) outward and upward to release the brake band (B) from the net wrap feed roll pulley. Raise the lever until it rests on the top of the latch tab (C).
