Set Monitor-Controller Display, Metric or English Units (Channel 008)

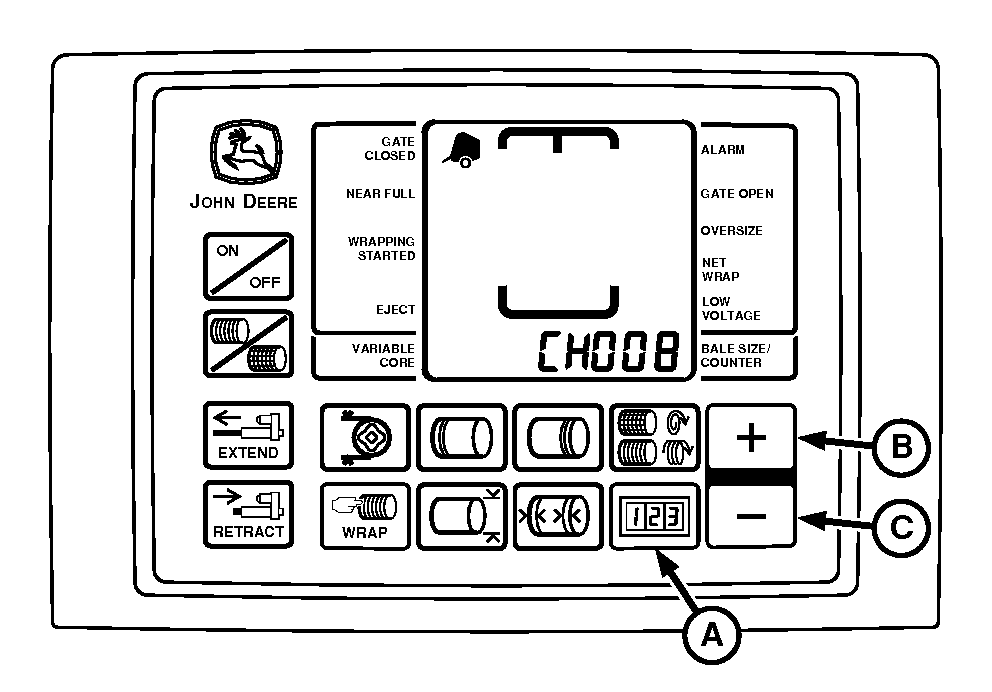

E52525-UN-26JUN03

A - COUNTER Key

B - PLUS Key

C - MINUS Key

Monitor-controller is initially set to display in English units (inches; in.).

To Change Setting:

1. Turn tractor key to ON position. Do not start tractor engine.

2. Press and hold COUNTER key (A) while turning monitor-controller ON.

3. Continue to hold COUNTER key and press PLUS key (B) until CH008 appears in digital display.

4. Release COUNTER key and view current setting; either En for English (inches) or SI for metric (centimeters, cm).

5. Use PLUS key (B) and MINUS key (C) to change to desired setting.

6. Turn monitor-controller OFF to enter setting into memory.

7. Turn tractor key to OFF position. Remove key.
