Adjust Bale Density

To adjust the bale density, close gate and lower belt tension arm. This will allow the bale density knob to be turned more easily.

E61060
E61060-UN-15MAR12

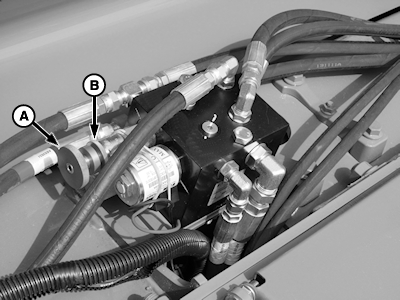

A - Knob

B - Locking Ring

Tension valve has been preset at the factory. Operate baler at this setting for a break-in period of approximately 50 bales. This will reduce maintenance and increase the life of the baler.

The correct adjustment for this break-in period may be checked by the following procedure:

Loosen locking ring (B) and turn knob (A) clockwise until seated. Turn knob (A) counterclockwise two turns. Tighten locking ring (B).

After the break-in period, adjust bale density as follows:

  1. Loosen locking ring (B).

  2. Turn knob (A) as desired:

    • Counterclockwise for lighter bales
    • Clockwise for heavier bales

  3. Tighten locking ring (B).
