Operate Baler with Bale Push Bar
(If Equipped)

1.


   E32671-UN-29NOV88


   E32692-UN-06DEC88

   Bale push bar is activated when gate is opened. Be sure that bystanders are clear and there is sufficient clearance behind baler when opening the gate.

   To prevent injury or damage from a rolling bale, discharge bales on level ground or in such a manner that the bale will not roll.

   Tractor hydraulic flow must be at least 25 L/min. (6.5 gpm) to operate bale push bar when making full diameter and full density bales. Set tractor hydraulic flow controls to open gate in 5—6 seconds.


   E37418-UN-22JUL93

   A - Chains

   B - Gate Pins

   Be sure that both chains (A) are attached to the gate pins (B). (See ENGAGE BALE PUSH BAR in this section.)

---




2.
   E58886-UN-06AUG10

   Form and wrap bale as usual.

---




3. To prevent injury or damage from a rolling bale, discharge bales on level ground or in such a manner that the bale will not roll.

   Backing up baler is not required unless in rolling terrain conditions where runaway bales are likely. In these conditions, lock out the push bar and position baler so bale will not roll after being ejected.

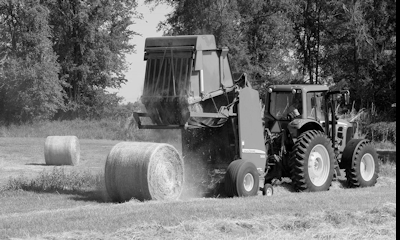

4. Raise gate to eject bale. Hold tractor hydraulic lever until gate is fully raised. Do not stop gate while raising.

   A slight forward movement of the tractor can be felt as the bale is rolled back by the push bar.

5.
   E58887-UN-06AUG10

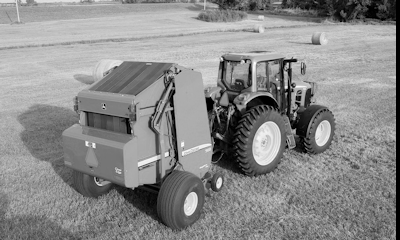

   Lower the gate. Keep hydraulic lever engaged until monitor displays gate closed symbol.

---




6. Proceed making the next bale.

If a bale sticks in the bale chamber, the push bar can swing back before the bale has dropped to the ground. This will prevent the gate from closing. Raise gate fully and drive forward to clear the bale. Push bar will roll over bales up to 1829 mm (6 ft.) in diameter.
