Engage Bale Push Bar (If Equipped)

1.

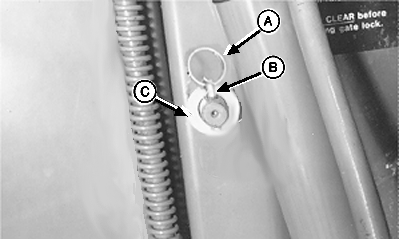

   E39712-UN-19JUL96

   A - Retaining Ring

   B - Pin

   C - Washer

   Remove retaining ring (A) from pin (B).

---




2. Remove pin (B) and washer (C) from gate pin.

3.

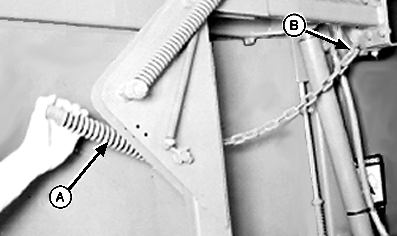

   E39706-UN-22MAY96

   A - Spring

   B - Lockout Hook

   Remove tension from chain by rotating the spring (A) to the rear. Remove end chain link from lockout hook (B).

---




4. Let chain hang free to remove any twists.

5. Both chains must be attached to gate pins before operating the push bar. Damage can occur to the push bar and gate if one chain is left in the lockout position or is unhooked.

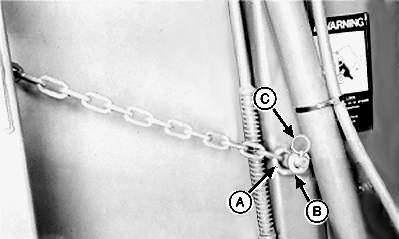

   E39707-UN-19JUL96

   A - End Chain Link

   B - Washer

   C - Retaining Ring

   Attach end chain link (A) on gate pin.

---




6. Install washer (B). Put pin UP through gate pin and fasten with retaining ring (C).

7. Repeat on opposite side.
