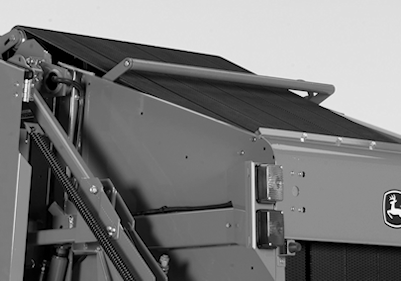

Auxiliary Take-up Roll
E66782-UN-17JUL12
The auxiliary take-up roll is used on conditions where trash
buildup is a problem. The auxiliary take-up roll starts the belts
turning sooner as the gate closes to reduce trash accumulation inside
the baler.
It also tensions the belts sooner to reduce belt twisting or
belt turnover in windy or side hill conditions.
|
|
PP98408,0001073-19-20130211
|
|
