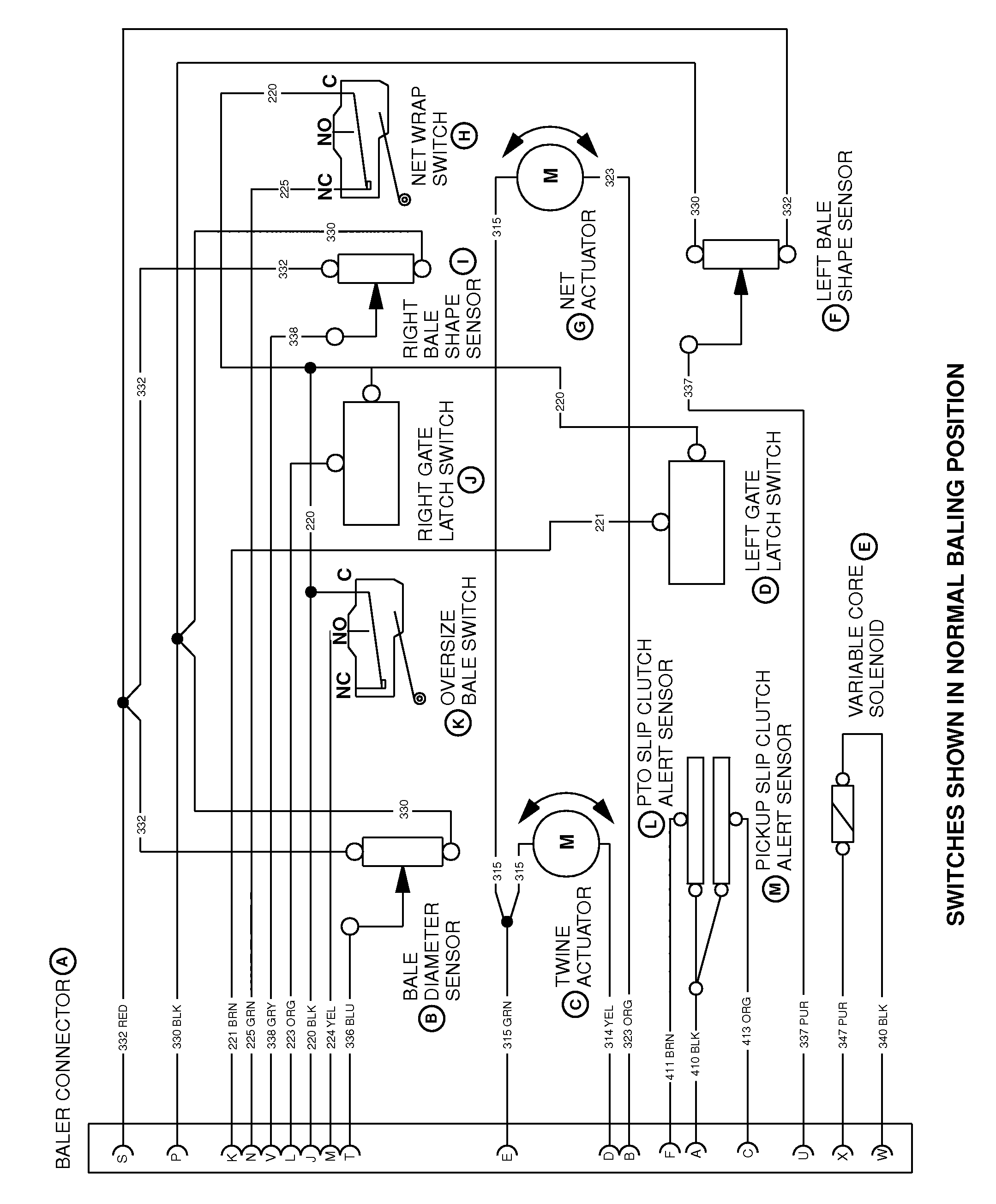

Wire Diagram—BaleTrak™ Pro Monitor-Controller Control System

E57242-UN-29JUN09

A - Baler Connector

B - Bale Diameter Sensor

C - Twine Actuator

D - Left Gate Latch Switch

E - Variable Core Solenoid

F - Left Bale Shape Sensor

G - Net Actuator

H - Net Wrap Switch

I - Right Bale Shape Sensor

J - Right Gate Latch Switch

K - Oversize Bale Switch

L - PTO Slip Clutch Alert Sensor

M - Pickup Slip Clutch Alert Sensor
