Install Compressor Rack (MegaWide™ Plus)

E66832
E66832-UN-09AUG12

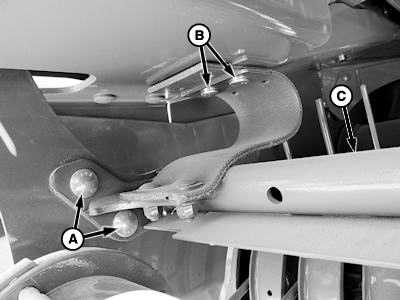

A - Round-Head Bolt and Nut (2 each side)

B - Round-Head Bolt and Nut (2 each side)

C - Compressor Tube

  1. Place compressor tube (C) over top of roller baffle, with rods pointing inside pickup.

  2. Fasten rubber strap with round-head bolts (B).

  3. Fasten compressor tube (C) with round-head bolts (A) to bracket.

  4. Repeat Steps 1 and 2 on opposite side.

  5. Adjust clearance between compressor rods and rotor strippers. (See ADJUST COMPRESSOR RODS in this section.)
