Adjust Roller Baffle Float Tension

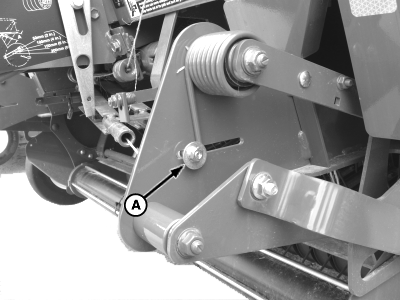

E54714-UN-28JUN06

A - Nut

Float tension spring must be adjusted evenly on both sides of roller baffle.

To move tension spring, pry between washer and front of slot to move spring tine to rear.

• To increase float, loosen nut (A) and move spring tine to the rear.
• To decrease float, loosen nut (A) and let spring tine move forward.
• Repeat on opposite side.
