Adjust Twine Indicator Retaining Strap

1.

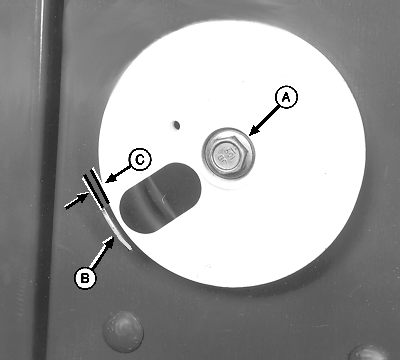

   E39735-UN-16FEB96

   Right-Hand Side Shown

   A - Cap Screw

   B - Retaining Strap

   C - Distance

   Loosen cap screw (A).

---




2. Position retaining strap (B) as follows:

   • Right-hand side of baler; eight o'clock position
   • Left-hand side of baler; four o'clock position



3. Adjust dimension (C) between strap and twine indicator wheel according to specifications.

   Strap-to-Twine Indicator Wheel	Distance	0.4—0.8 mm (0.016—0.031 in.)

4. Tighten cap screw (A).

5. Twine indicator wheel must spin freely after adjustment.
