Check and Adjust Net Pan Pressure without Leaf Spring

1.

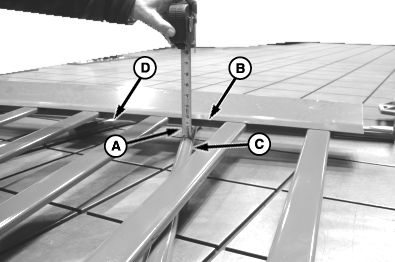

   E55596-UN-13FEB08

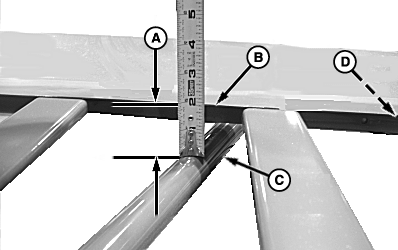

   E55595-UN-13FEB08

   Left-Hand Pan Tube Shown

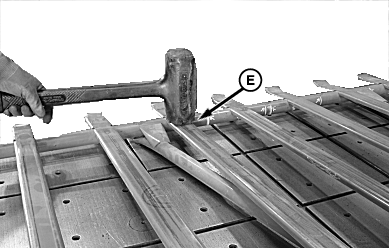

   E55597-UN-13FEB08

   A - Distance, 52 ± 5 mm (2.0 ± 0.2 in.)

   B - Net Pan Angle

   C - Support Tube

   D - Support Tube

   E - Net Pan Channel (near front crossbar)

   Remove net pan from baler. (See NET WRAP USE AFTER EXTENDED STORAGE in this section.)

---




2. Remove leaf spring by removing cotter pins. Lay net pan flat on a level surface.

3. Measure distance (A) between top of net pan angle (B) and top of both support tubes (C) and (D). Distance (A) must be 52 ± 5 mm (2.0 ± 0.2 in.).

   • If distance (A) is more than 57 mm (2.2 in.), use a dead blow hammer and tap on each net pan channel (E) near front crossbar. Recheck distance (A) and repeat as needed.
   • If distance (A) is less than 47 mm (1.8 in.), place net pan on floor. Step on net pan rear crossbar near center and lift net pan angle (B) to bend channels. Recheck distance (A) and repeat at needed.



4. Straighten net pan angle. (See CHECK AND STRAIGHTEN NET PAN ANGLE in this section.)

5. Install leaf spring and net pan in reverse order as removed. After installing net pan:

   • See CHECK AND ADJUST LOWER NET WRAP GUIDE
   • See CHECK BELT TRACKING
   • See CHECK AND ADJUST NET PAN PRESSURE
