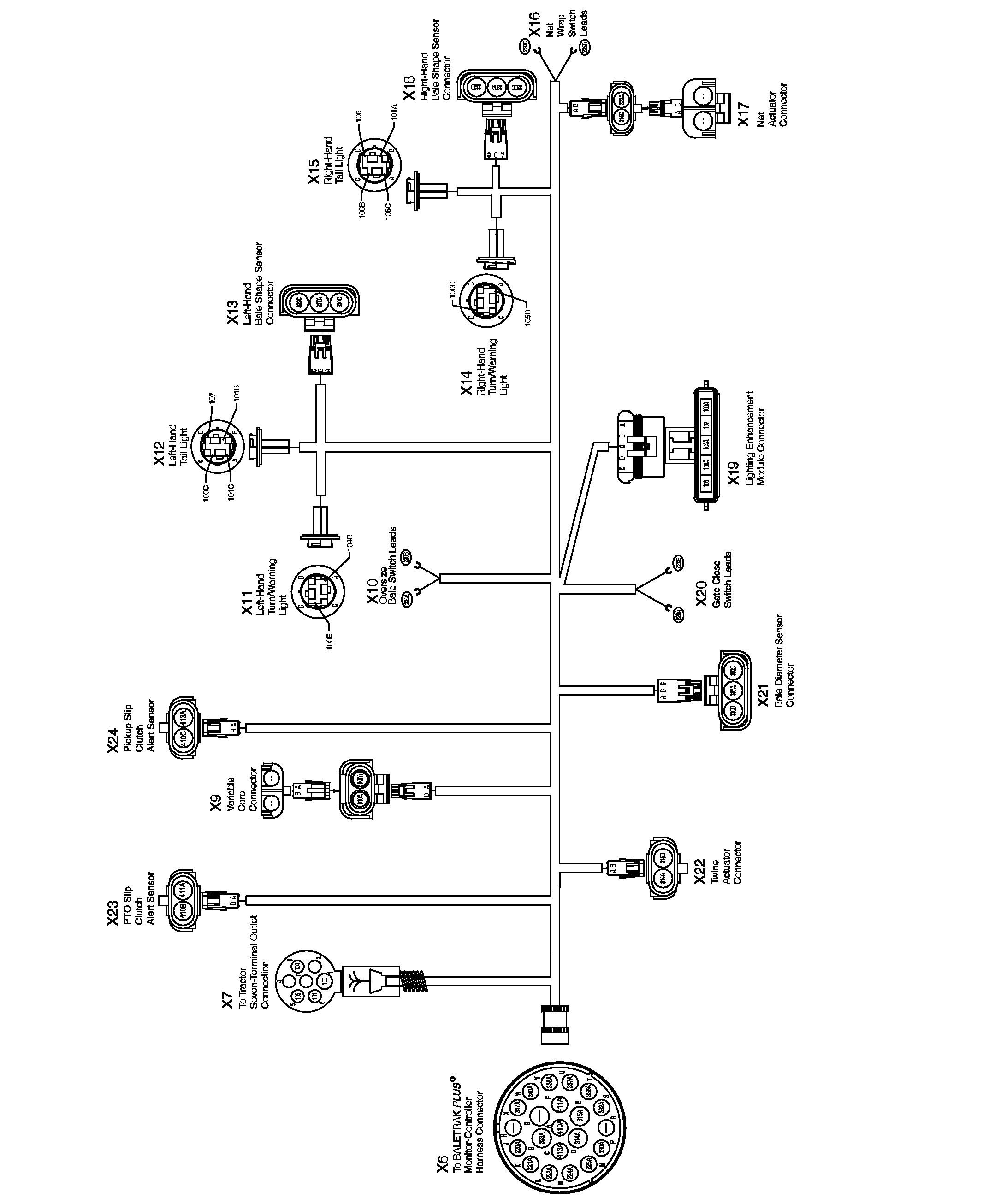

Wire Harness Diagram—Baler

E84487-UN-12SEP17

X6 To BaleTrak™ Pro Monitor-Controller Harness Connector
Terminal	Circuit	Function	Wire Color
A	410A	Ground	Black
B	323A	Net Actuator	Orange
C	413A	Pickup Slip Clutch Alert Sensor1	Orange
D	314A	Twine Actuator	Yellow
E	315A	Twine or Net Actuator	Green
F	411A	PTO Pickup Slip Clutch Alert Sensor1	Brown
G		Open
H		Open
J	220A	Ground	Black
K	221A	Left-hand Gate Closed Switch	Brown
L	223A	Right-hand Gate Closed Switch	Orange
M	224A	Oversize Bale Switch	Yellow
N	225A	Net Switch	Green
P	330A	Sensor Ground	Black
R		Open
S	332A	Bale Diameter Sensor	Red
T	336A	Bale Diameter Sensor	Blue
U	337A	Left Bale Shape Sensor	Purple
V	338A	Right Bale Shape Sensor	Gray
W	340A	Ground	Black
X	347A	Power	Purple

X7 To Tractor Seven-Terminal Outlet Connector
Terminal	Circuit	Function	Wire Color
1	100	Ground	Black
2		Open
3	104	Left-hand Turn or Warning Light	Yellow
4		Open
5	105	Right-hand Turn or Warning Light	Green
6	101	Tail Lights	Brown
7		Open

X9 Variable Core Connector
Terminal	Circuit	Function	Wire Color
A	347A	Power	Purple
B	340A	Ground	Black

X10 Oversize Bale Switch Leads
Terminal	Circuit	Function	Wire Color
No Common	224A	Power	Yellow
No Common	220B	Ground	Black

X11 Left-Hand Turn or Warning Light Connector
Terminal	Circuit	Function	Wire Color
A	104B	Power	Yellow
B		Open
C		Open
D	100E	Ground	Black

X12 Left-Hand Tail Light Connector
Terminal	Circuit	Function	Wire Color
A	104C	Left-hand Turn or Warning Light	Yellow
B	101B	Left-hand Tail Lamp	Brown
C	100C	Ground	Black
D	107	Left-hand Flasher	Orange

X13 Left-Hand Bale Shape Sensor Connector
Terminal	Circuit	Function	Wire Color
A	330C	Ground	Black
B	337A	Left Bale Shape	Purple
C	332C	Left Bale Shape	Red

X14 Right-Hand Turn or Warning Light Connector
Terminal	Circuit	Function	Wire Color
A	105B	Power	Green
B		Open
C		Open
D	100D	Ground	Black

X15 Right-Hand Tail Light Connector
Terminal	Circuit	Function	Wire Color
A	105C	Right-hand Turn or Warning Light	Green
B	101A	Right-hand Tail Lamp	Brown
C	100B	Ground	Black
D	106	Right-hand Flasher	Violet

X16 Net Wrap Switch Leads
Terminal	Circuit	Function	Wire Color
No Common	220D	Ground	Black
No Common	225A	Power	Green

X17 Net Actuator Connector
Terminal	Circuit	Function	Wire Color
A	315C	Net Actuator	Green
B	323A	Net Actuator	Orange

X18 Right-Hand Bale Shape Sensor Connector
Terminal	Circuit	Function	Wire Color
A	330D	Ground	Black
B	338A	Right Bale Shape	Gray
C	332D	Right Bale Shape	Red

X19 Lighting Enhancement Module Connector
Terminal	Circuit	Function	Wire Color
A	100A	Ground	Black
B	107	Left-hand Flasher	Orange
C	104A	Left-hand Turn or Warning Light	Yellow
D	105A	Right-hand Turn or Warning Light	Green
E	106	Right-hand Flasher	Violet

X20 Right-Hand Gate Closed Switch Leads
Terminal	Circuit	Function	Wire Color
No Common	220E	Ground	Black
No Common	223A	Power	Orange

X21 Bale Diameter Sensor Connector
Terminal	Circuit	Function	Wire Color
A	330B	Ground	Black
B	336A	Bale Diameter	Blue
C	332B	Bale Diameter	Red

X22 Twine Actuator Connector
Terminal	Circuit	Function	Wire Color
A	314A	Twine Actuator	Yellow
B	315B	Twine Actuator	Green

X23 PTO Speed Sensor
Terminal	Circuit	Function	Wire Color
A	411A	PTO Slip Clutch Alert1	Brown
B	410B	Ground	Black

X24 Pickup Speed Sensor
Terminal	Circuit	Function	Wire Color
A	413A	Pickup Slip Clutch Alert1	Orange
B	410C	Ground	Black
