Adjust Baler Hitch

1.
   E62317-UN-04APR12

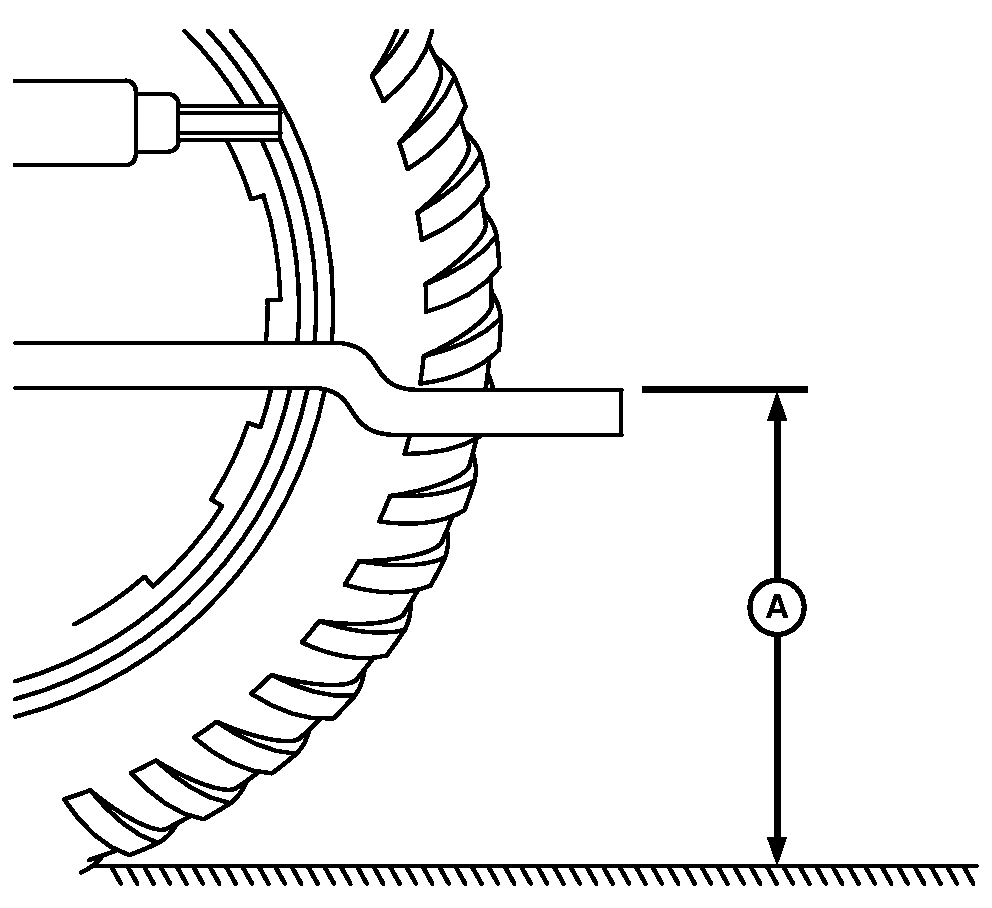

   A - Dimension

   Measure from the top of the tractor drawbar to the ground. Measure on level ground.

---




2. All baler hitches are factory installed in position 3.

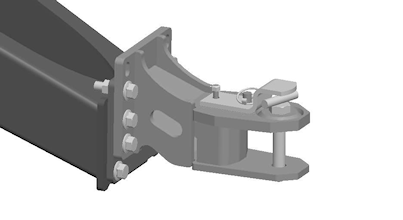

   E60309-UN-13JUL11

   Position 1

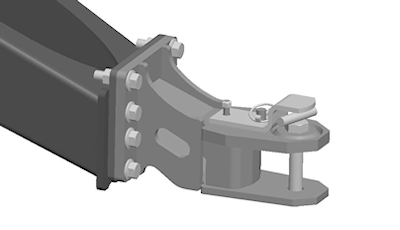

   E60310-UN-13JUL11

   Position 2

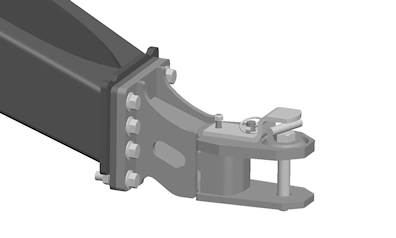

   E60311-UN-13JUL11

   Position 3 (Factory Setting)

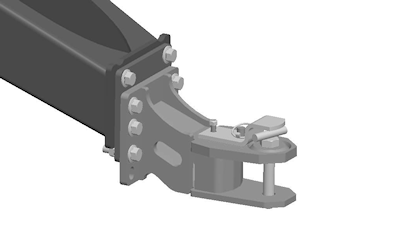

   E60312-UN-13JUL11

   Position 4

   Adjust baler hitch according to the drawbar dimension.

   MegaWide™ Plus Pickup	Drawbar Dimension (A)
   Position 1	533—559 mm (21—22 in)
   Position 2	483—508 mm (19—20 in)
   Position 3	406—457 mm (16—18 in)
   Position 4	330—381 mm (13—15 in)
   Regular Pickup	Drawbar Dimension (A)
   Position 1	432—559 mm (17—22 in)
   Position 2	330—432 mm (13—17 in)
   Position 3	Not Recommended
   Position 4	Not Recommended
   MegaWide™ HC2 Pickup	Drawbar Dimension (A)
   Position 1	Not Recommended
   Position 2	533—559 mm (21—22 in)
   Position 3	432—533 mm (17—21 in)
   Position 4	330—432 mm (13—17 in)

---




3.

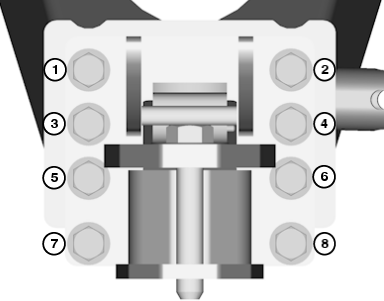

   E83250-UN-24MAY17

   Tighten hardware using sequence 1—8 as shown.

---




4. Tighten hardware to specification.

   Adjustable Hitch Hardware	Torque	350 N·m (258 lb·ft)
