Remove and Install Roller Baffle (MegaWide™ HC2 Feed System)

1. If the roller baffle and compressor rack are removed as an assembly, the assembly weighs approximately 55 kg (122 lb).

   The roller baffle only, with hardware, weighs approximately 38 kg (84 lb).

   The roller baffle and compressor rack can be removed as assembly if necessary.

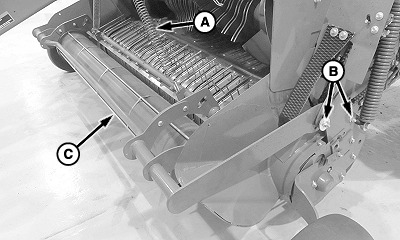

   E83548-UN-19JUN17

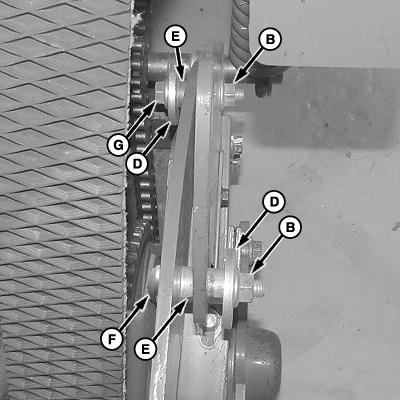

   E83550-UN-19JUN17

   Left-Hand Side Shown

   A - Spring (2 used)

   B - Nut (4 used)

   C - Roller Baffle

   D - Washer (4 used)

   E - Bushing (4 used)

   F - Front Carriage Bolt (2 used)

   G - Rear Cap Screw (2 used)

   Remove the compressor rack if necessary.

---




2. Raise the pickup and disconnect the springs (A). Lower the pickup.

   Record the mounting hardware orientation as removed.

3. Remove the nuts (B) on the roller baffle as the washers (D), bushings (E), carriage bolts (F), and cap screws (G) are removed.

4. Remove the roller baffle (C) from the machine.

5. Install in the reverse order of the removal procedure.
