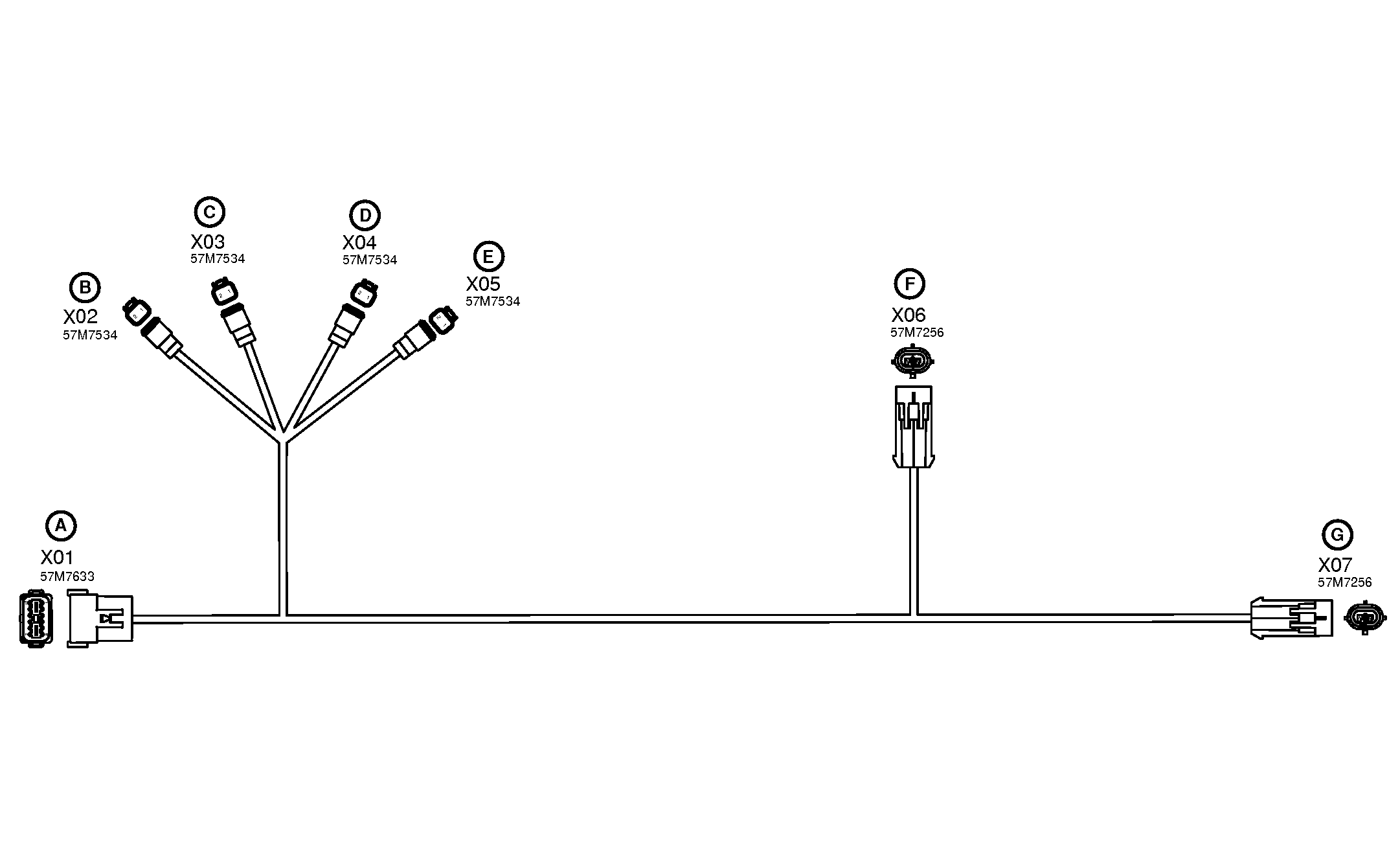

Wire Harness Diagram—HC2 Feed System

E83499-UN-14JUN17

A - Precutter Connector (X01)

B - Pickup Solenoid (X02)

C - Knives Engage Solenoid (X03)

D - Drop Floor Solenoid A (X04)

E - Drop Floor Solenoid B (X05)

F - Knife Switch (X06)

G - Drop Floor Switch (X07)

X01 Precutter Connector
Terminal	Circuit	Function	Wire Color
1	0513	Pickup Valve Supply	Orange
2	0514	Knife Valve Supply	Yellow
3	0515	Drop Floor Valve Supply	Green
4	0510	Valve Ground	Black
5	0516	Knife Switch Signal	Blue
6	0517	Drop Floor Switch Signal	Violet
7	0220	Switch Ground	Black

X02 Pickup Solenoid
Terminal	Circuit	Function	Wire Color
1	0513	Pickup Valve Supply	Orange
2	0510	Valve Ground	Black

X03 Knives Engage Solenoid
Terminal	Circuit	Function	Wire Color
1	0514	Knife Valve Supply	Yellow
2	0510	Valve Ground	Black

X04 Drop Floor Solenoid A
Terminal	Circuit	Function	Wire Color
1	0515	Drop Floor Valve Supply	Green
2	0510	Valve Ground	Black

X05 Drop Floor Solenoid B
Terminal	Circuit	Function	Wire Color
1	0515	Drop Floor Valve Supply	Green
2	?0510	Valve Ground	Black

X06 Knife Switch
Terminal	Circuit	Function	Wire Color
A	0516	Knife Switch Signal	Blue
B	?0220	Switch Ground	Black

X07 Drop Floor Switch
Terminal	Circuit	Function	Wire Color
A	0517	Drop Floor Switch Signal	Violet
B	0220	Switch Ground	Black
