Adjust Third Roll Valve Trigger (MegaWide™ HC2 Pickup Only)

If the third roll drive is not re-engaging (cylinder retracting when the tension arm is closed), perform the following adjustment:

1.

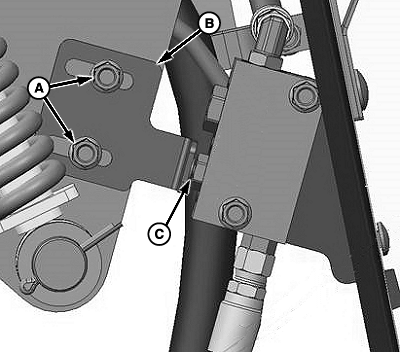

   E84117-UN-22AUG17

   A - Nut (2 used)

   B - Bracket

   C - Poppet Valve

   Loosen nuts (A).

---




2. Adjust bracket (B) so that the poppet valve (C) is fully compressed (1.5 mm) when the tension arm is down fully. Tighten nuts (A).

   To verify that the third roll drive reengages, cycle the gate up and down.
