Adjust Gate Latch Proximity Switches

1.

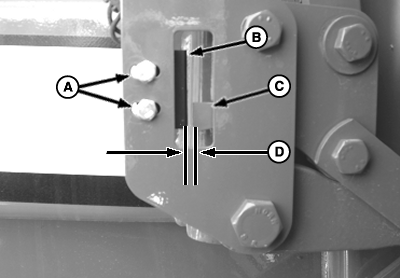

   E54646-UN-12JUN06

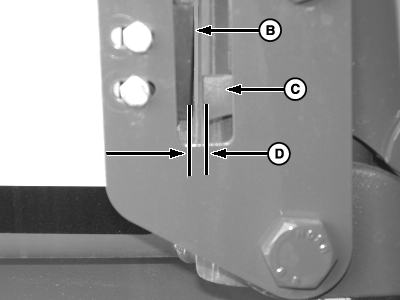

   E54648-UN-12JUN06

   A - Bolt (2 used)

   B - Proximity Switch

   C - Latch Bar

   D - Dimension, 3.0 mm (1/8 in)

   Close and latch gate. (Gate cylinders must be fully retracted.)

---




2. Loosen bolts (A) and move the switch so it is parallel with mounting window edge and correct distance (D) from latch bar (C).

3. Ensure proximity switch (B) is even distance from top and bottom of latch bar (C). Set distance to specification.

   Proximity Switch	Distance	3.0 mm (1/8 in)

4. Repeat on the opposite side.

5. Confirm switch operation by taking test readings using monitor-controller. (See Adjust Gate Latch Proximity Switches and Adjust Oversize Bale Switch in this section.)
