Calibrate Bale Diameter Display (Channel 005)

1.

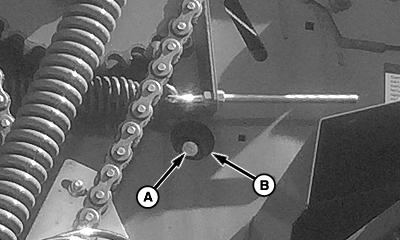

   E89821-UN-21AUG18

   A - Tension Arm Cap Screw

   B - Side Sheet Hole

   Slowly raise the tension arm using the tractor SCV until the tension arm cap screw (A) aligns with the side sheet hole (B).

---




2.

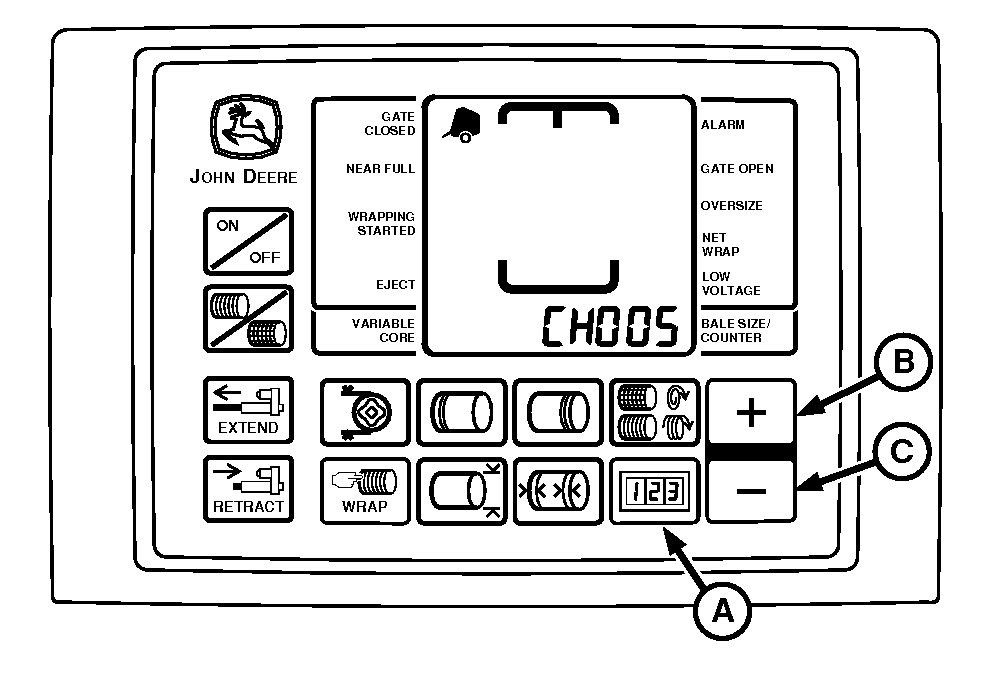

   E84413-UN-01SEP17

   BaleTrak™ Pro Monitor

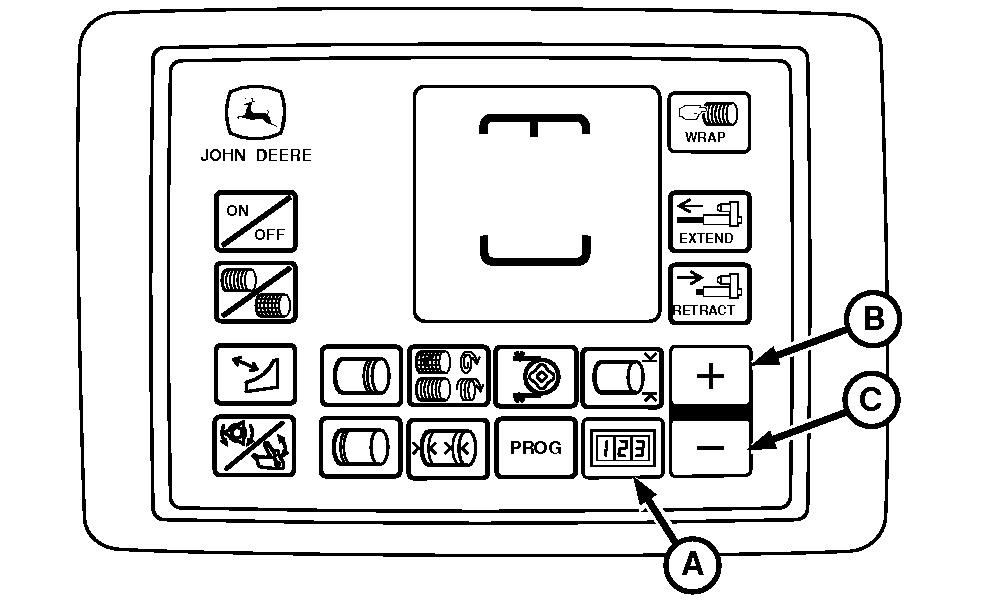

   E84047-UN-10AUG17

   BaleTrak™ Plus Monitor

   A - COUNTER Key

   B - PLUS Key

   C - MINUS Key

   Press and hold the COUNTER key (A) and turn the monitor-controller ON.

---




3. Continue to hold the COUNTER key and press the PLUS key (B) until CH005 appears in the digital display.

4. Release the COUNTER key. The current bale diameter sensor value is shown.

5. The value displayed when the channel is first entered is the current calibration of the bale diameter sensor. If the tension arm is moved, then the current sensor reading is shown.

   Press the PLUS key (B) and the MINUS key (C) simultaneously to calibrate the bale diameter display to the current sensor position. An audible beep is heard to confirm that the calibration has been saved.

6. Lower the tension arm.

7. Check the calibration in the field and fine-tune with the CH028 adjustment. (See Adjust Bale Diameter Display [Channel 028] in Operating the Baler section.)
