Adjust B-Wrap Sensor

1. Be sure that sensor (A) is straight on bracket as screws are tightened.

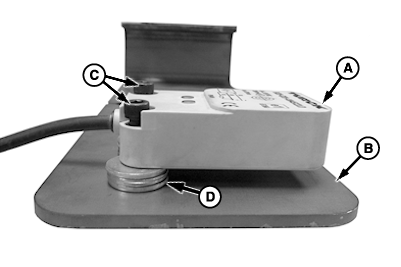

   E69287-UN-08JAN13

   A - Sensor

   B - Bracket

   C - Screw and Lock Nut, M4 x 30 mm (2 used)

   D - Washer, 5.3 x 15 x 1.2 mm (4 used per screw)

   Sensor (A) is mounted to bracket (B) using screws and lock nuts (C), and washers (D).

---




2.

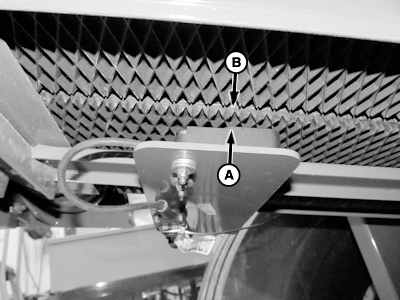

   E75422-UN-23APR14

   A - Sensor

   B - Belt

   Distance between top of sensor (A) and belt (B) must be within specification.

   Sensor-to-Belt	Distance	4—8 mm (0.16—0.31 in.)

   Add or remove washers under sensor as needed. If washers need added, add them to the sensor side of the bracket.

---
