Assemble Main PTO Driveline (If Necessary)

  1. E62346
    E62346-UN-05APR12

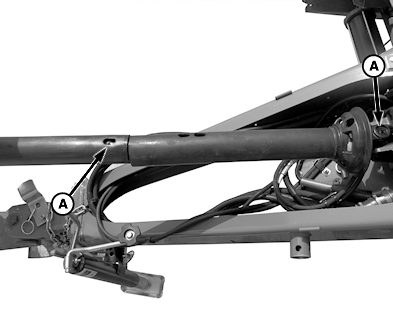

    A - Lubrication Fittings

    Make sure to align lubrication fittings (A) when assembling PTO driveline.


  2. Wipe dirt and any excess grease from shaft and sleeve to avoid contamination and wear. Assemble telescoping members together.

  3. Apply multipurpose grease, or equivalent, to lubrication fitting at sleeve before operating. (See Lubrication and Maintenance section.)

PP98408,0000EC5-19-20130207
