Incorrect Belt Lacing and Pin Installation

When belts are assembled, edges must be aligned to prevent belt damage.

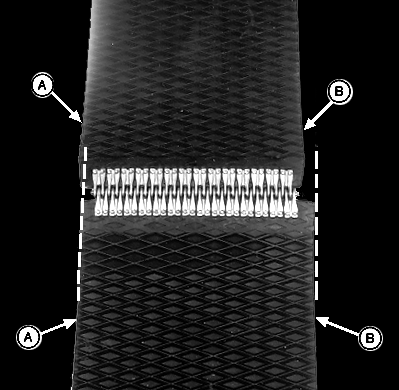

E40645
E40645-UN-15JUL96

A - Belt Edges

B - Belt Edges

Belt illustrated is pinned incorrectly. The edges (A and B) of belt do not align. Remove pin and offset laces one loop to align belt
