Replace Gate Close Switch

  1. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.

  2. Label wires before disconnecting from switch to ensure proper connection to new switch terminals.

    Label wires.

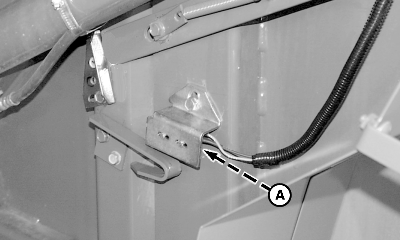

  3. E48458
    E48458-UN-20JUL00

    A - Switch

    Remove mounting hardware and bracket with switch (A).


  4. Disconnect wires from switch.

  5. Remove switch from mounting bracket.

  6. Install new switch in reverse order of removal using the following procedure:

    • Adjust switch or bracket position for proper operation. (See ADJUST GATE CLOSE SWITCH in this section.)
    • Confirm switch operation by taking test readings using monitor-controller. (See TEST GATE CLOSE AND OVERSIZE BALE SWITCHES [CHANNELS 013 AND 014] in this section.)

PP98408,0000FBE-19-20130207
