Install Hitch Pin and Safety Chain

1. Verify that bracket (A) is installed on tongue before performing procedure.

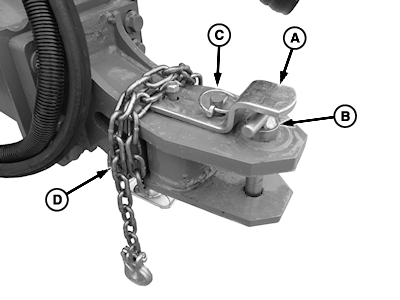

   E69228-UN-07DEC12

   A - Bracket

   B - Hitch Pin

   C - Quick-Lock Pin

   D - Safety Chain

   Turn bracket (A) to the side and install hitch pin (B).

---




2. Return bracket (A) to operating position and install quick-lock pin (C).

3. Install safety chain (D).
