Every 30 Hours

PTO Driveline

Only use John Deere SD Polyurea grease on driveline grease locations.

Regular driveline greasing and greasing amounts are important for maintaining driveline life and quiet operation.

E62422-UN-09AUG12

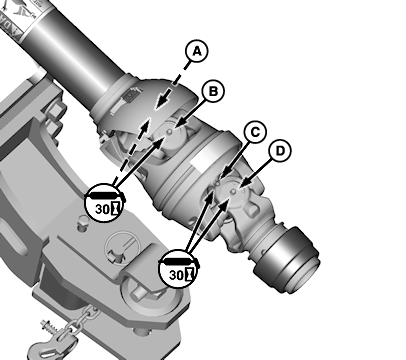

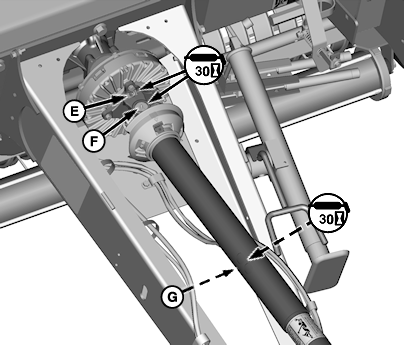

E62423-UN-09AUG12

A - 5 Pumps

B - 5 Pumps

C - 30 Pumps

D - 5 Pumps

E - 5 Pumps

F - 5 Pumps

G - 10 Pumps

PTO Driveline (MegaWide HC2 Pickup Only)

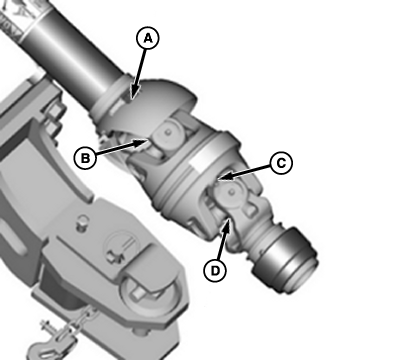

E84495-UN-14SEP17

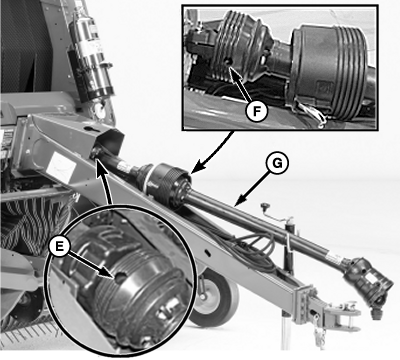

E83514-UN-10AUG17

A - 5 Pumps

B - 5 Pumps

C - 5 Pumps

D - 5 Pumps

E - 5 Pumps

F - 5 Pumps

G - 10 Pumps

H - 30 Pumps

Pickup Lift Crank

E82748-UN-08MAY17

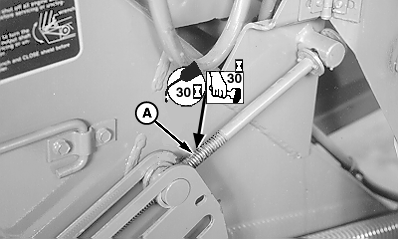

A - Pickup Crank Thread

Twine Arms and Twine Actuator Rod

Twine arms can move unexpectedly. To avoid crushing, keep hands out of the twine arm path. Turn off power before servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arm is on.

E47598-UN-07JAN00

Hydraulic cylinder pivot lubrication fitting is on machines equipped with hydraulic actuated twine wrap only.

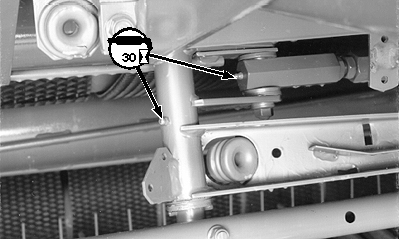

E39204-UN-16FEB96

450M

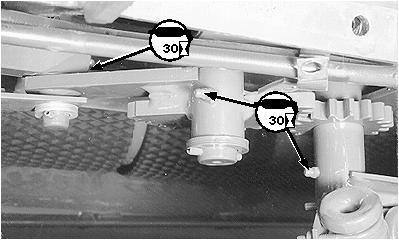

E39264-UN-19JUN96

550M

Clean off foreign material or crop buildup from the actuator rod.

CoverEdge™ Net Wrap Counterknife Arm Pivot (If Equipped)

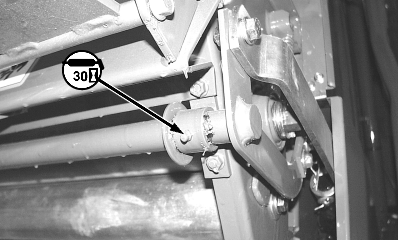

E48340-UN-12JUL00

Right-Hand Side Shown

Do not over-lubricate the counterknife arm pivot lubrication fittings. Grease getting onto the rubber roll, causing wrappage, can occur.

Lubrication fittings are on both left and right-hand sides.

Pickup Drive Idler Pivot

E83887-UN-26JUL17

Left-Hand Side Shown

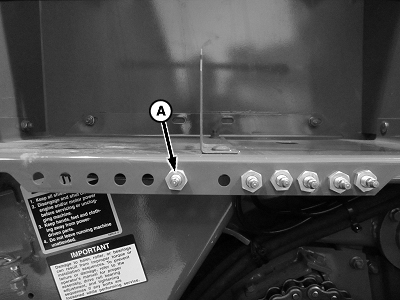

E83888-UN-26JUL17

Right-Hand Side

A - Lubrication Fitting

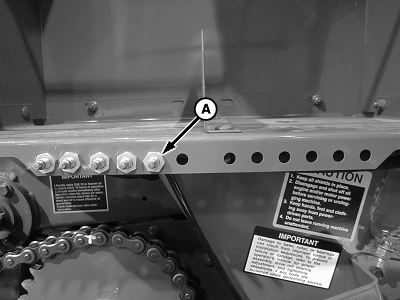

Apply grease to the lubrication fittings (A) for the pickup drive idler pivot.

Shield removed for illustration purposes.

Pickup Idler Arm

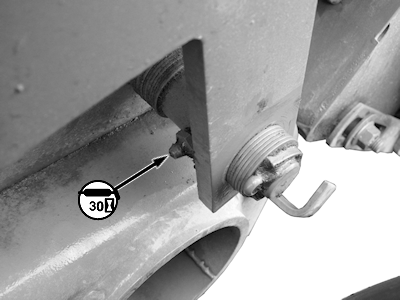

E61069-UN-16AUG12

Right-Hand Side

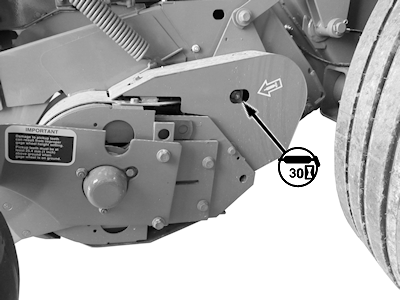

E61070-UN-16MAR12

Left-Hand Side

Pickup Lift Bellcrank Pivot

E83888-UN-26JUL17

Right-Hand Side Shown

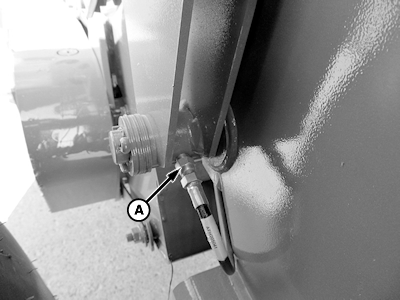

E83535-UN-15JUN17

Left-Hand Side Shown

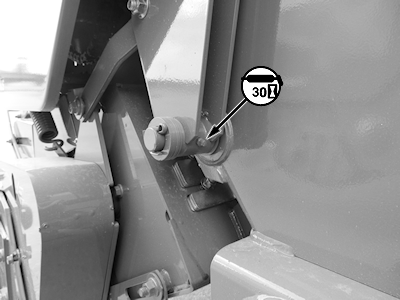

E61081-UN-16MAR12

Left-Hand Side Shown

A - Lubrication Fitting
