Replace Teeth (Pickup Installed)

MegaWide™ Plus and Regular Pickups

1. Never use any type of tool or wrench on shafts while tractor engine is operating. Always remove tools from shaft as soon as procedure is finished.

   To service pickup from the rear, open gate fully and lock gate.

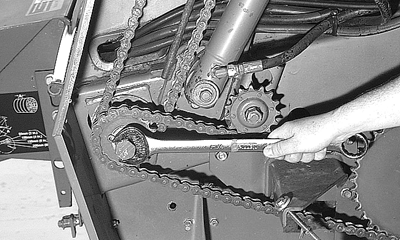

   E48221-UN-23JUN00

   Rotate pickup reel by turning gear case hex shaft using an open-end wrench as shown.

---




2.

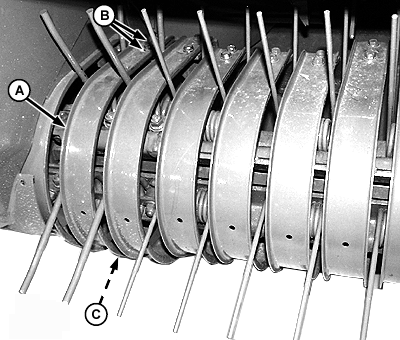

   E48047-UN-20JUL00

   Right-Hand End, 4 ft MegaWide™ Plus Shown

   A - Strippers

   B - Self-Tapping Cap Screw (2 used)

   C - Nut (2 used)

   Loosen self-tapping cap screws (B) and nuts (C) (each stripper).

---




3. Remove strippers (A) that are directly over the damaged teeth.

MegaWide™ Plus Pickup and MegaWide™ HC2 Pickup.

1.

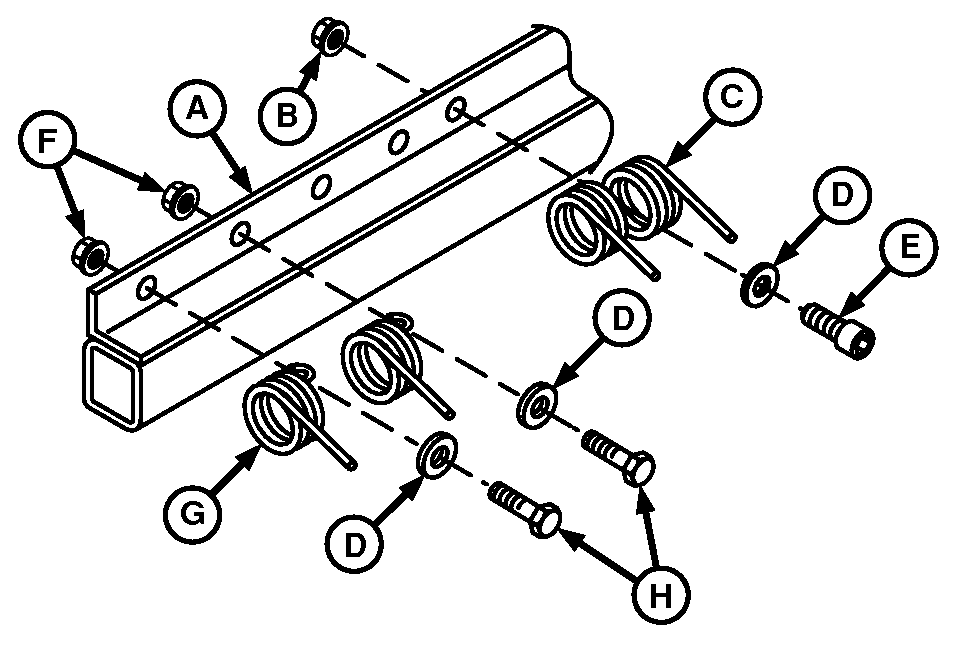

   E60331-UN-02AUG11

   450M MegaWide™ Plus

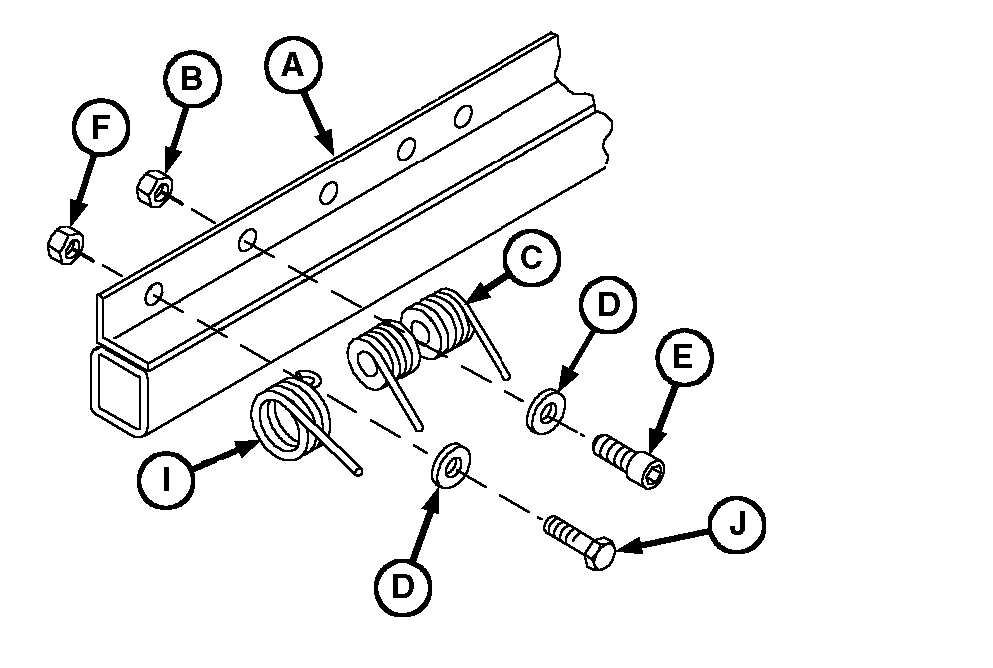

   E48728-UN-31JUL00

   550M MegaWide™ Plus

   A - Tooth Bar

   B - Flange Nut (as required)

   C - Tooth or Tines

   D - Washer

   E - Socket Head Cap Screw

   F - Flange Nut (as required)

   G - Tooth

   H - Cap Screw

   Outside teeth (G) are larger than center teeth. Outside teeth are single tine pieces and center teeth are double tine pieces. The two types of teeth are mounted to tooth bar differently. There are large outside teeth on each tooth bar on both left and right-hand ends of pickup.

   Right-hand end shown. Number of large outside teeth on each end of tooth bar:

   • 450M —MegaWide™ Plus—Two Teeth
   • 550M —MegaWide™ Plus—One tooth



   Outside teeth: Remove flange nuts (F), cap screws (H), washer (D), and tooth or tines (G).

   Center teeth: Remove flange nut (B), socket-head cap screw (E), washer (D), and tooth or tines (C).

---




2. It is recommended always to replace the hardware when replacing the square wire teeth.


   E48049-UN-26MAY00

   Center Tooth or Tines

   A - Tooth Bar

   B - Flange Nut

   C - Tooth Coil

   D - Washer

   E - Socket Head Cap Screw

   F - Tooth or Tine

   Install new teeth in reverse order as removed using the following special instructions:
   • Coil (C) must rest against the inside angle of bar (A) with tooth or tine (F) pointing away from bar.
   • Washer (D) must be installed in position shown to fasten tooth to bar.


   • Install teeth as shown.
   • Tighten lock nuts to specifications.

     Center Spring Tooth-to-Tooth Bar Lock Nut	Torque	61 N·m (45 lb·ft)
     Outside Spring Tooth-to-Tooth Bar Lock Nut—Two Single Teeth With Strap	Torque	61 N·m (45 lb·ft)
     Outside Spring Tooth-to-Tooth Bar Lock Nut—Single Tooth	Torque	61 N·m (45 lb·ft)

   • Tighten stripper self-tapping cap screws to specifications.

     Stripper-to-Frame Self-Tapping Cap Screws	Torque	33 N·m (24 lb·ft)




   If mounting threads for the stripper self-tapping cap screws become stripped, weld M8 nuts to bottom side of the pickup frame strap.

---

Regular Pickup Only

1.

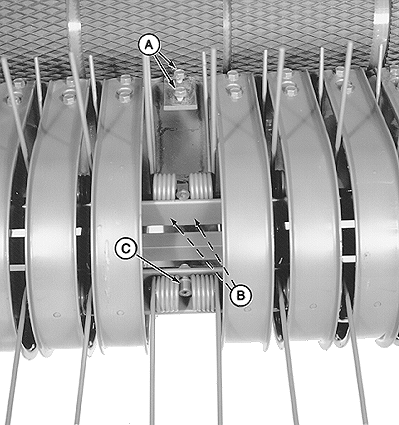

   E40934-UN-11NOV96


   E40364-UN-08AUG96

   A - Self-Tapping Cap Screw (2 used)

   B - Carriage Bolt and Nut (2 each used)

   C - Socket-Head Cap Screw

   D - Washer

   E - Spring Tooth or Tine

   To remove the stripper directly over broken or bent teeth, loosen the two screws (A) and two carriage bolts and nuts (B).

---




2. Remove lock nut, washer (D), socket-head cap screw (C), and spring tooth or tine (E).

3. Install new teeth (as shown in bottom illustration) in reverse order as removed using the following special instructions:

   • The tooth coil must rest against the inside angle of bar with tooth or tine (E) pointing away from bar.
   • Washer (D) must be installed in position shown to fasten tooth to bar.
   • Tighten lock nut to specifications.

     Spring Tooth-to-Tooth Bar Lock Nut	Torque	47 N·m (35 lb·ft)



   • Tighten the stripper self-tapping cap screws to specifications.

     Stripper-to-Frame Self-Tapping Cap Screws	Torque	33 N·m (24 lb·ft)




   If mounting threads for the stripper self-tapping cap screws become stripped, weld M8 nuts to bottom side of the pickup frame strap.
