Adjust Pickup Float Springs—MegaWide™ Plus Pickup

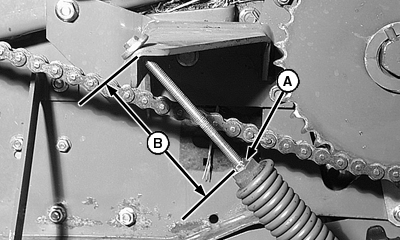

E48174-UN-19JUN00

Left-Hand Side

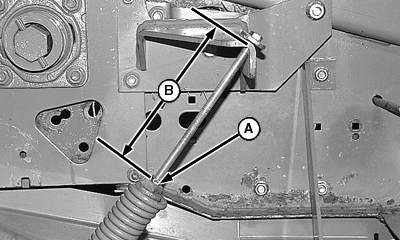

E48175-UN-19JUN00

Right-Hand Side

A - Lock Nut

B - Float Spring Setting Dimension

More spring force is needed if:

• Operating at pickup tooth-to-ground clearance above 50 mm (2 in) with spindles in the normal position.
• The baler has been lowered at the wheel spindles to improve feeding. (See Bale Short, Dry, Slick Crops in Operating the Baler section.)

Less spring force is needed if:

• The pickup does not lower to desired operating height.
• The pickup bounces too much and leaves crop.
• The baler has been raised at the wheel spindles to improve feeding. (See Bale Cornstalks in Operating the Baler section.)

1. Loosen lock nut (A).

2. Tighten screw into spring plug until dimension (B), between the spring plug casting and the anchor is attained. Dimension (B) is intended for pickup tooth ground clearance of 25—50 mm (1—2 in) with wheel spindles in normal position.

   DIMENSION (B)
   450M (Both Sides)	75 mm (3 in)
   550M (Both Sides)	55 mm (2 in)

3. Tighten lock nut (A).
