Twine Arm Timing (550M)

Twine arms can move unexpectedly. To avoid crushing, keep hands out of the twine arm path. Turn off power before servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

E47598
E47598-UN-07JAN00

E39695
E39695-UN-31JAN96

A - Timing Marks

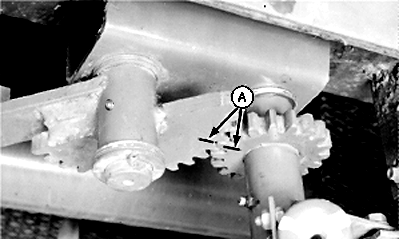

When replacing or servicing twine arms or drive gear, make sure timing marks (A) are lined up as shown.

SF04007,0000E6A-19-20170504
