Adjust Lower Feed Roll Scraper

1.


   TS698-UN-21SEP89

   Avoid injury or death caused by the unexpected lowering of the gate. Engage the gate lock before working on, around, or under the gate in the raised position.

   Open gate fully, then lower to a convenient height.

---




2. Shut off engine and remove ignition key.

3. Lock the gate.

4. Verify that tension arm is fully raised and against its stops.

5.
   E21748-UN-13SEP88

   Non-Net Wrap Balers

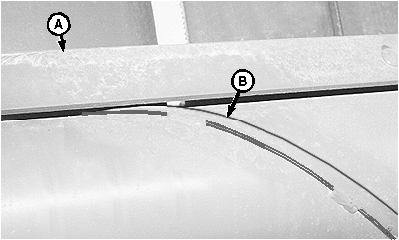

   E40236-UN-17JUL96

   Silage Special and Net Wrap Balers

   A - Scraper

   B - Gate Roll

   Loosen mounting lock nuts on scraper (A).

---




6. Using feeler gauge, adjust scraper (A) until roll-to-scraper clearance is within specifications at tightest points. Tighten lock nuts.

   Lower Front Gate Roll-to-Scraper	Clearance	2.5—5.5 mm (3/32—7/32 in)

7. To make sure that the scraper does not hit the roll at any point, rotate the roll.

8. Unlock and lower gate.
