Install Wheel Spindles on 450M Baler with Regular Pickup and 11L-14 Tires

Wheel spindles and tires are factory installed in the shipping position on the baler with a regular pickup. Change spindles from shipping position to normal position.

Do not operate the baler with the wheel spindle in shipping position.

Wheel spindle position controls baler height and feeding capacity.

Normal position illustrated is used for most baling conditions. For all other crop conditions, see Wheel Spindle Positions in Preparing the Baler section.

1. When raising baler with a jack or hoist, place a jackstand or equivalent support under the baler frame (A) before installing spindles and tires.

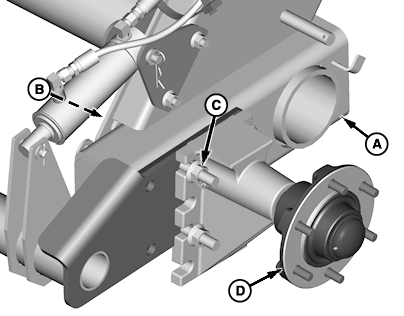

   E66124-UN-22JUN12

   Normal Position—Optional Bale Ramp Shown

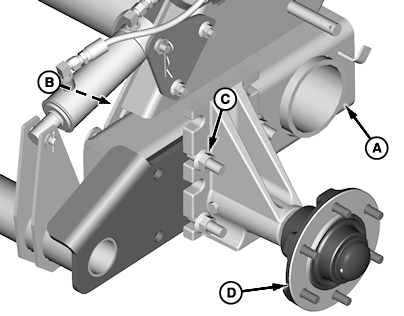

   E66125-UN-22JUN12

   Raised Position—Optional Bale Ramp Shown

   A - Location (Baler Frame)

   B - Cap Screw, M16 x 160 (4 used)

   C - Flange Nut, M16 (4 used)

   D - Spindle

   Park baler on a level surface.

---




2. Using a jack or hoist, raise one side of baler. Place a jackstand, or equivalent support, under the baler frame (A).

3. Remove cap screws (B), flange nuts (C), and spindle (D).

4. Install spindle (D) with hub offset up. Fasten with cap screws (B) and flange nuts (C) using the top and third notches in spindle (D). Tighten flange nuts to specification.

   Flange Nuts	Torque	237 N·m (175 lb·ft)

5. Repeat procedure on the opposite side.
