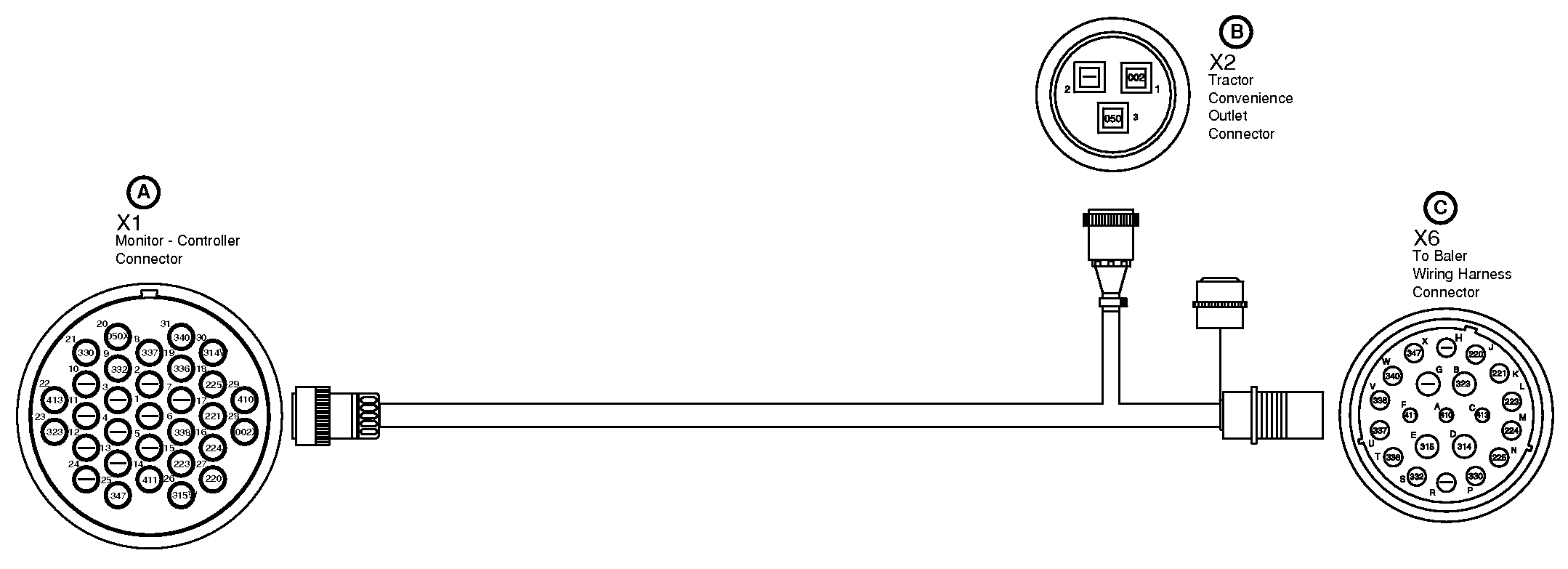

Wire Harness Diagram—BaleTrak™ Pro and Plus Monitor-Controller

E83612-UN-18JUL17

A - Monitor-Controller Connector (X1)

B - Tractor Convenience Outlet Connector (X2)

C - To Baler Wire Harness Connector (X6)

X1 BaleTrak™ Monitor-Controller Connector
Terminal	Circuit	Function	Wire Color
1
2	0513	Pickup Valve Supply	Orange
3	0514	Knives Valve Supply	Yellow
4	0515	Drop Floor Valve Supply	Green
5	0510	Valve Ground	Black
6	0338	Right Bale Shape Sensor	Gray
7
8	0337	Left Bale Shape Sensor	Violet
9	0332	5 V Sensor Power	Red
10	0516	Knife Switch Signal	Blue
11
12
13	0517	Drop Floor Switch Signal	Violet
14	0411	PTO Speed Sensor Signal	Brown
15	0223	Right Gate Switch Signal	Orange
16	0224	Oversize Switch Signal	Yellow
17	0221	Left Gate Switch Signal	Brown
18	0225	Net Switch Signal	Green
19	0336	Bale Size Sensor Signal	Blue
20	0050X	Switch Ground	Black
21	0330	5 V Sensor Ground	Black
22	0413	Pickup Speed Sensor Signal	Orange
23	0323	Net Actuator Power	Orange
24
25	0347	Soft Core Valve Supply	Violet
26	0315	Net/Twine Common	Green
27	0220	Switch Ground	Black
28	0002X	12 V System Power	Red
29	0410	Sensor Ground	Black
30	0314	Twine Actuator Power	Yellow
31	0340	Soft Core Valve Return	Black

X2 Tractor Convenience Outlet Connector
Terminal	Circuit	Function	Wire Color
1	002	Power	Red
2
3	050	Ground	Black

X6 Monitor Harness-to-Baler Harness Connector
Terminal	Circuit	Function	Wire Color
1	0323	Net Actuator Power	Orange
2	0314	Twine Actuator Power	Yellow
3	0315	Net/Twine Common	Green
4
5	0410	Sensor Ground	Black
6	0413	Pickup Speed Sensor Signal	Orange
7	0411	PTO Speed Sensor Signal	Brown
8	0220	Switch Ground	Black
9	0221	Left Gate Switch Signal	Brown
10	0223	Right Gate Switch Signal	Orange
11	0224	Oversize Switch Signal	Yellow
12	0225	Net Switch Signal	Green
13	0330	5 V Sensor Ground	Black
14	0332	5 V Sensor Supply	Red
15	0336	Bale Size Sensor Signal	Blue
16	0337	Left Bale Shape Sensor Signal	Violet
17	0002A	12 V System Power	Red
18	0338	Right Bale Shape Sensor Signal	Gray
19	0050A	System Ground	Black
20	0340	Soft Core Valve Return	Black
21	0347	Soft Core Valve Supply	Violet
22	0513	Pickup Valve Supply	Orange
23	0516	Knife Switch Signal	Blue
24	0517	Drop Floor Switch Signal	Violet
25	0514	Knives Valve Supply	Yellow
26	0515	Drop Floor Valve Supply	Green
27
28	0510	Valve Ground	Black
29
