Slip Main PTO Driveline Slip Clutch

1.


   TS698-UN-21SEP89

   Make sure that gate is locked. If gate is not locked while performing this procedure, the gate could close suddenly causing injury or death.

   To maintain drive protection, disassemble and clean dirt between the pressure plate and the disk spring. Dirt can become trapped between the pressure plate and the disk spring not allowing the disk spring to flatten.

   At the beginning of each season, verify that the baler or tractor main drive slip clutch is not seized. Otherwise drivetrain damage can occur.

   MegaWide™ HC2 equipped balers have a cam clutch in this same location that requires no maintenance.

   Raise gate fully using tractor hydraulics to slacken the belts.

---




2. Turn off tractor engine and remove key.

3. Lock gate.

4. Disconnect PTO driveline from tractor.

5. Loosen slip clutch bolts evenly. Failure to do so can cause clutch to fail.

   If the baler is operated with a seized-up clutch, damage to the drivetrain can result.

   Do not loosen cap screws more than three turns.


   E83438-UN-12JUN17

   A - Slip Clutch Cap Screw (6 used)

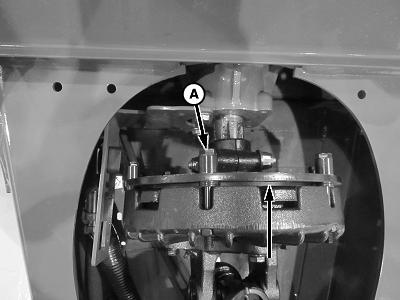

   Loosen the six cap screws (A) evenly, 1—2 turns at a time.

---




6. Never use any type of tool or wrench on shaft while tractor engine is running. Always remove tool from shaft immediately after use.


   E82432-UN-13APR17


   E83439-UN-12JUN17

   A - Socket

   B - Bar

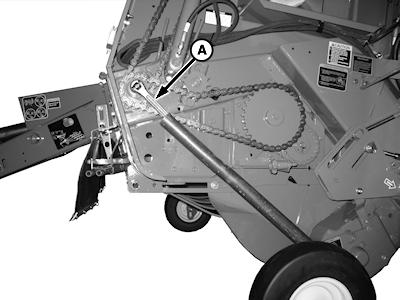

   Put a 35 mm (1-3/8 in) socket (A) and wrench with a long handle on the output shaft of the gear case. Extend handle, if necessary, to contact the baler axle or ground to keep the wrench from rotating as shown.

---

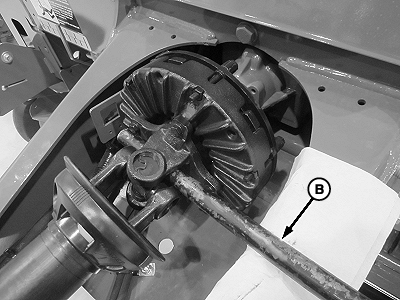

7. Insert bar (B) between yoke and the U-joint as shown.

8. Slip the clutch.

9. Remove the socket (A) and the bar (B).

10. Adjust slip clutch. (See Adjust Main PTO Driveline Slip Clutch in this section.)

11. Unlock and lower gate.
