Check and Straighten Net Pan Angle

E55331-UN-09JUL07

A - Straight Edge

B - Net Pan Angle

1. Place net pan on solid, level surface.

2. Remove leaf spring by removing two cotter pins (one on each end of the leaf spring).

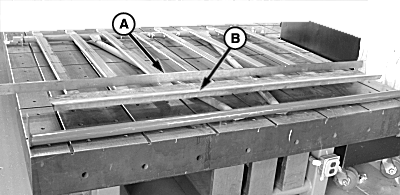

3. Place a straight edge (A) on the net pan angle (B) top (shown) or channel beneath the net pan angle.

4. Net pan angle can be bowed up to 2.5 mm (0.10 in).

5.
   E82736-UN-21APR17


   E82737-UN-21APR17

   A - Block (2 used)

   B - Dead Blow Hammer

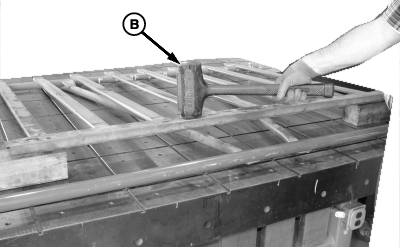

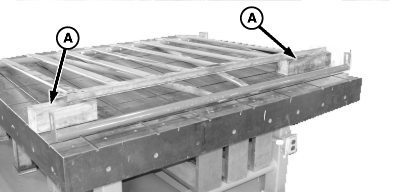

   If the bow is high in the middle, place blocks (A) under each end and apply a downward pressure. Use a dead blow hammer (B) in the middle of the net pan angle to straighten.

---




6. Adjust net pan pressure. (See Check and Adjust Net Pan Pressure without Leaf Spring in this section.)
