Check and Adjust Net Wrap Switch

1.


   TS268-UN-23AUG88


   E82739-UN-21APR17

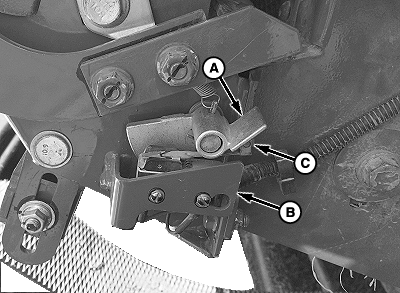

   A - Switch Arm

   B - Bracket

   C - Actuator Tab

   Knife is sharp and net wrap cut-off arm can move without warning. Keep hands clear of the knife arm.

   Turn tractor key to ON position. Do not start tractor engine.

---




2. Turn monitor-controller ON. Ensure monitor-controller is in NET mode.

3. Open net wrap cover.

4. Clean area around switch.

5. Verify that the actuator tab (C) overlaps bracket (B). Bend bracket (B) to obtain overlap.

   Verify monitor display and switch operation:

   • Move knife arm angle to down position.
   • Go to channel 012. Tone must come on.
   • Rotate switch arm (A) down and tone must stop.
   • Release switch arm (A) and tone must come on.
   • If letter n does not appear on monitor display when actuator is down, or, letter n does not disappear when actuator is released, adjust switch.



6. Turn tractor ignition OFF and remove key.

7.
   E52493-UN-24JUN03

   BaleTrak™ Pro Monitor-Controller


   E84426-UN-06SEP17

   BaleTrak Plus Monitor-Controller

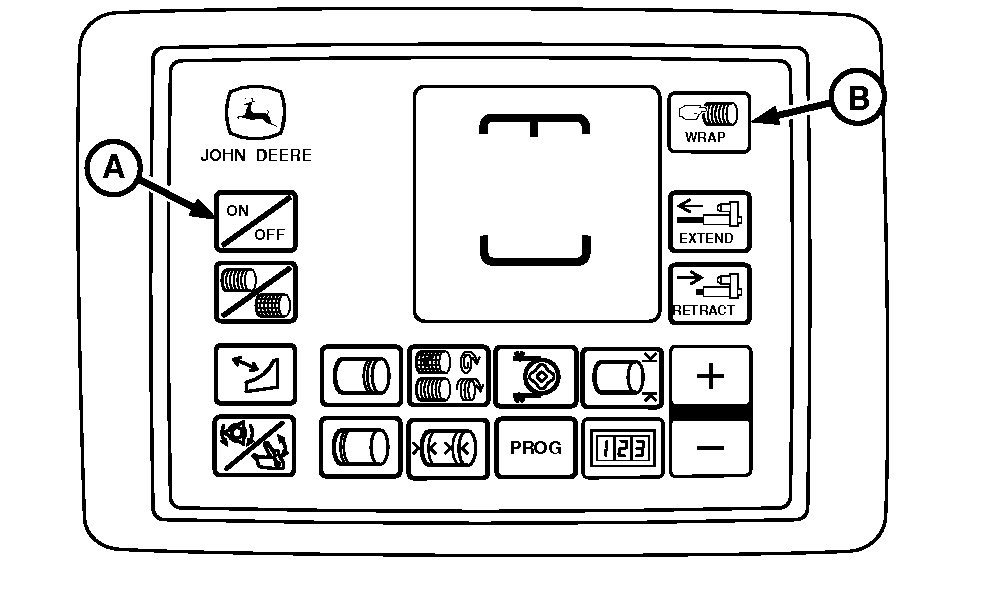

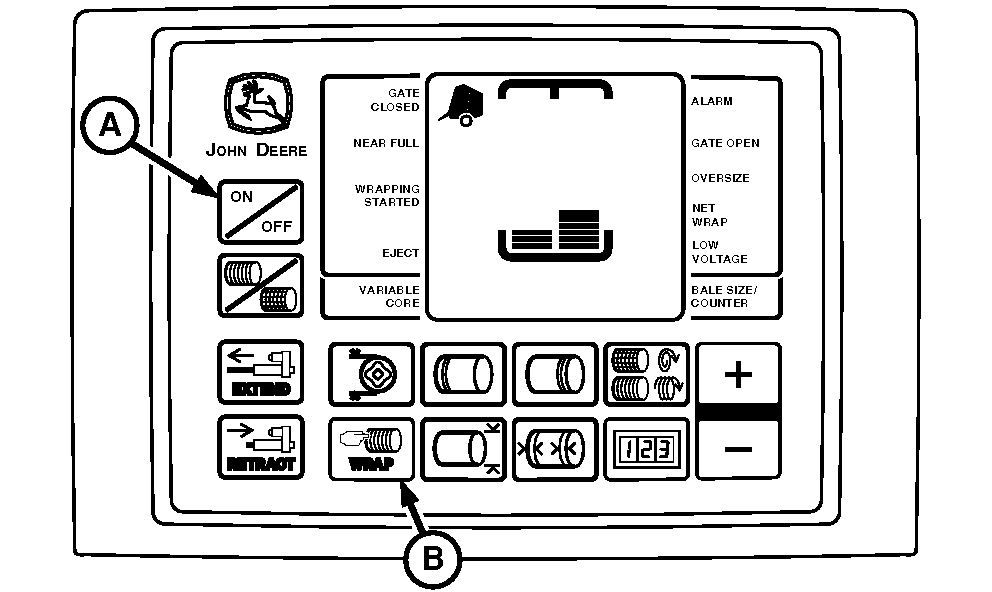

   A - ON or OFF Key

   B - WRAP Key

   Close net wrap cover.

---




8. To cycle the net wrap actuator, press the WRAP key (B). Net wrap cut-off arm must be at home (downward) position.

   If this procedure is not followed, net will be fed continuously during the next bale. The letter n appears in monitor-controller display.

9. Turn monitor-controller OFF (A). Turn tractor key to OFF position. Remove key.
