Adjust Bale Shape Sensor—In Shop Procedure (Channels 007 and 009)

1. Number of the bale shape indicator bars displayed is 24.

   Bale shape gauge strap (A) is available through your John Deere dealer.


   E48271-UN-06JUL00

   Left-Hand Side Shown

   A - Bale Shape Gauge Strap

   B - Bearing

   If bale shape gauge strap (A) is used:

   1. Install strap (A) over the roller bearing (B).

   2. Attach end of the strap over the baler frame cross-member. Make sure lip of the cross-member is seated on the strap.

---




2.
   E47620-UN-07JAN00

   Right-Hand Side Shown

   A - Dimension

   B - Rear Edge of Panel

   If bale shape gauge strap is not used:

   1. Put a board approximately 51 x 102 or 102 x 102 mm (2 x 4 or 4 x 4 in) between the roller bearing and belt as shown.

   2. Position board to hold bale shape sender arm. The rear of the roller bearing is 62 mm (2-7/16 in) (A) from the rear edge of panel (B).

---




3.
   E82740-UN-21APR17

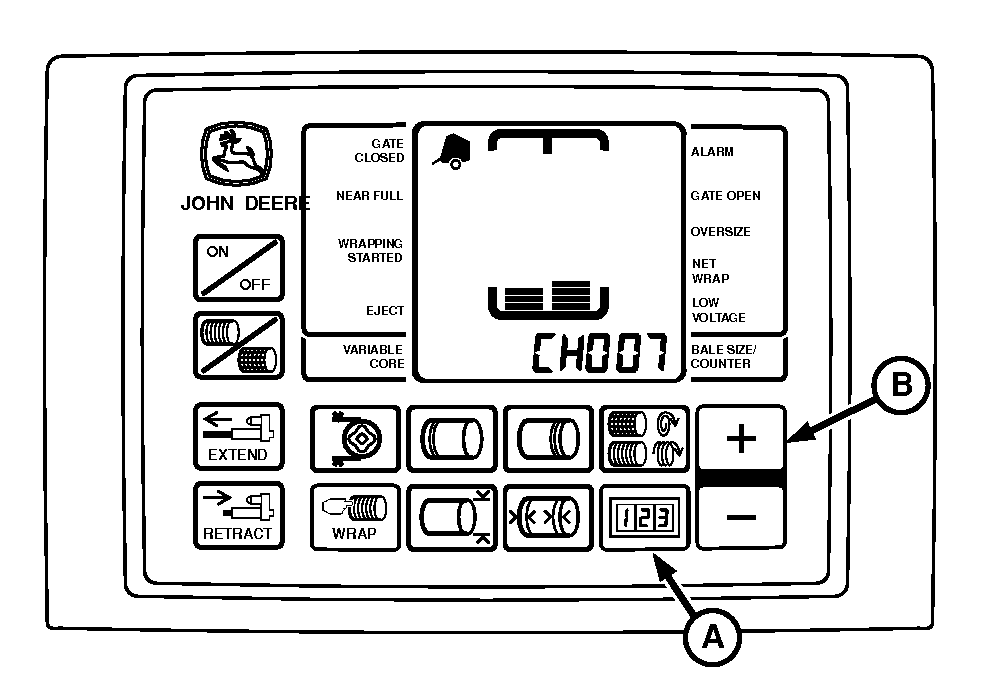

   BaleTrak™ Pro Monitor-Controller


   E84256-UN-29AUG17

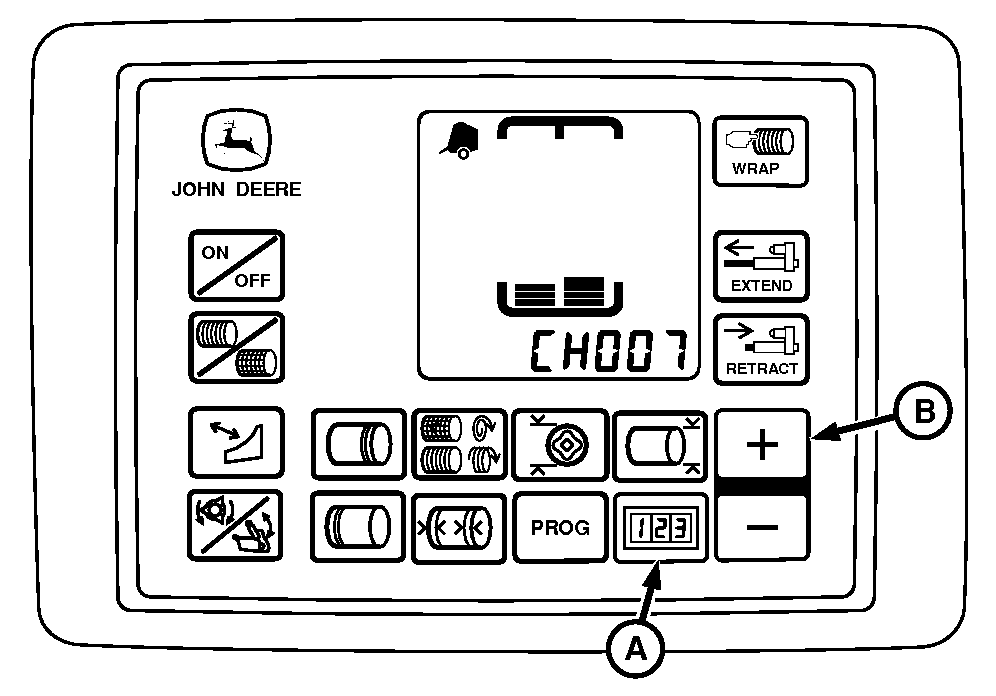

   BaleTrak Plus Monitor-Controller

   A - COUNTER Key

   B - PLUS Key

   Press and hold COUNTER key (A) while turning monitor-controller ON.

---




4. Continue to hold COUNTER key (A) and press PLUS key (B) until:

   • CH007 is displayed to adjust right side
   • CH009 is displayed to adjust left side



5. Release COUNTER key (A) to display sensor value.

6. To save the calibrations, simultaneously press the PLUS and MINUS keys.
