Adjust Third Roll Drive Chain (MegaWide™ HC2 Pickup Only)

1.

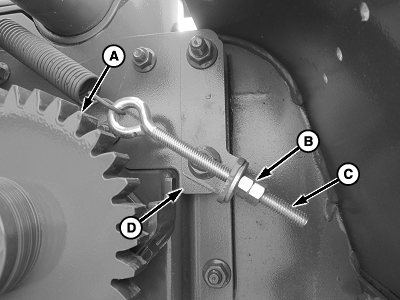

   E83537-UN-15JUN17

   A - Chain Idler

   B - Nut (2 used)

   C - Eyebolt

   D - Mounting Bracket

   Adjust the tension on the chain idler (A) by loosening nuts (B) on the eyebolt (C).

---




2. As chain stretches, further adjustments are necessary.

   Tighten nuts (B) until the end of the eyebolt (C) is past the mounting bracket (D). Tighten to specification.

   Mounting Bracket-to-End of Eyebolt—5 Foot	Distance	19 mm (0.748 in)

   Mounting Bracket-to-End of Eyebolt—6 Foot	Distance	50 mm (1.97 in)
