Tractor Convenience Outlet

E66075-UN-19JUN12

A - Convenience Outlet

John Deere 55 Series, 5000, 5010, 6000, 7000, 7010, and 8000 Models

Standard convenience outlet (A) provides power for:

• BaleTrak™ Pro or Plus Monitor-Controller (If Equipped)
• Variable (Soft) Core Solenoid Valve (If Equipped)

Other Tractor Models Without a Convenience Power Outlet

E39605-UN-27NOV95

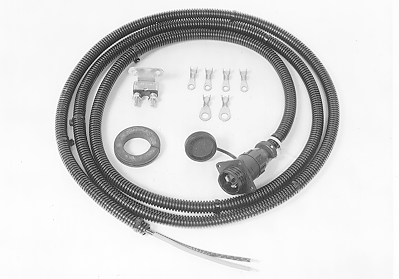

Order the convenience outlet kit from your John Deere dealer or qualified service provider. Kit consists of 12-gauge wires and a circuit breaker. When installing kit, attach the power and ground wires directly to the battery terminal clamp bolts, only.

If equipped with the BaleTrak™ Pro or Plus. The monitor-controller is polarity sensitive. The red lead from the monitor-controller power input MUST be installed on the positive (+) side of a 12 V system. Failure to do so causes the monitor-controller not to function.

Other Tractor Models with a Convenience Power Outlet, Equipped with BaleTrak™ Pro or Plus

E52484-UN-24JUN03

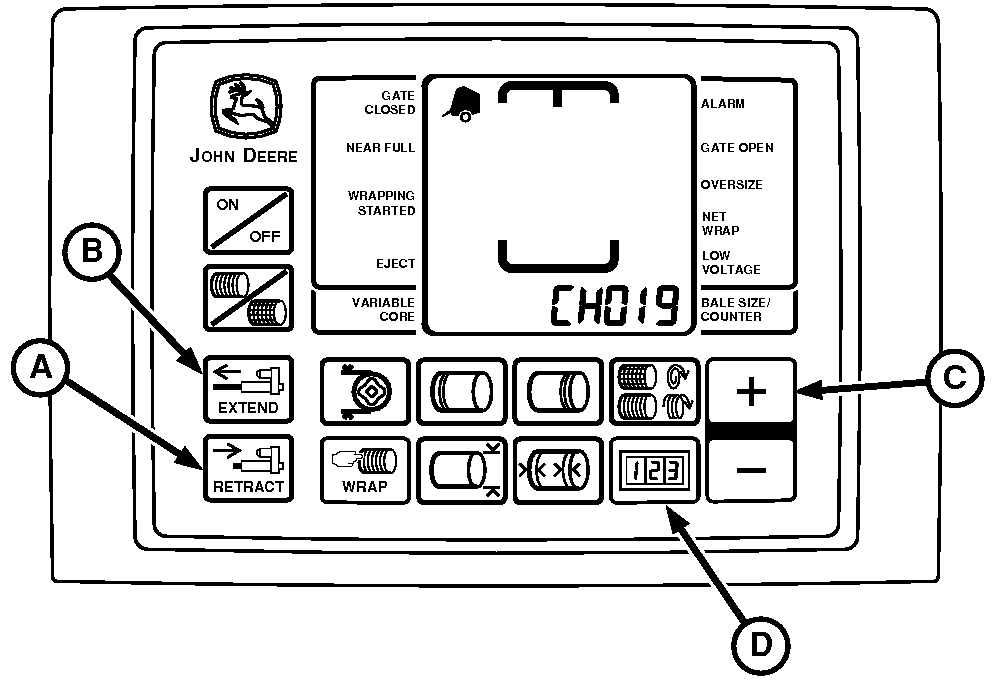

BaleTrak™ Pro Monitor-Controller

E84330-UN-06SEP17

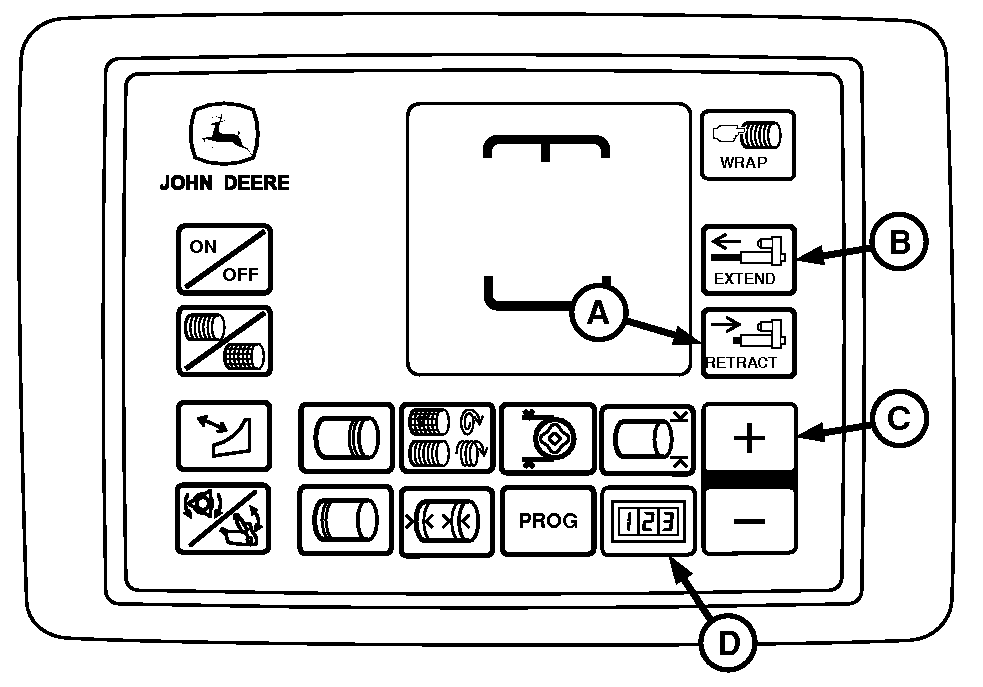

BaleTrak™ Plus Monitor-Controller

A - RETRACT Key

B - EXTEND Key

C - PLUS Key

D - COUNTER Key

To determine if the convenience power outlet provides adequate power for the BaleTrak™ Pro or Plus system, complete the following check:

1. With the tractor engine running and the monitor in twine mode, press and hold the COUNTER key (D) while turning on the monitor.

2. Continue to hold the COUNTER key and press PLUS key (C) until CH019 appears in the digital display.

3. Release COUNTER key (D). View voltage readout.

4. Using the EXTEND key (B), extend the twine actuator slightly.

5. Push and hold the RETRACT key (A) until the actuator stalls out in cut-off position and note voltage displayed.

6. Monitor-controller is polarity sensitive. Red lead from monitor-controller power input MUST be installed on the positive (+) side of a 12 V system.

   If a convenience outlet is needed, order the convenience outlet from your John Deere dealer or qualified service provider.

   If voltage is less than 9.7 V, install convenience outlet kit. Attach power and ground wires directly to the battery terminal clamp bolts, only.
