Wheel Spindle Positions on 450M with MegaWide™ HC2 Pickup and 21.5L x 16.1 Tires

No raised baler position is available with this spindle. Using spindle positions other than normal position can lead to machine damage.

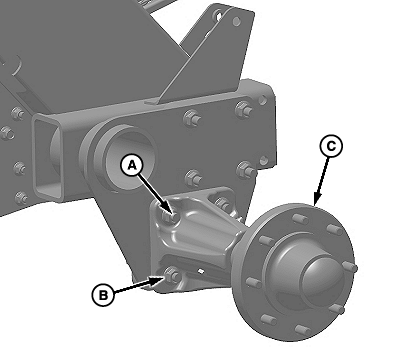

E82755-UN-18JUL17

Normal Position

A - Cap Screw, M16 x 180 (4 used)

B - Flange Nut, M16 (4 used)

C - Spindle

Normal position, as shown, is recommended for all baling conditions.

• Pickup teeth do not touch the ground with the pickup lowered, depending on the tractor drawbar height.

Cap screw heads are to face inside of frame; nuts on outside of wheel spindle.

1. Install cap screws (A), flange nuts (B), and spindle (C).

2. Tighten flange nuts to specification.

   Flange Nuts	Torque	350 N·m (255 lb·ft)

3. Repeat on the opposite side.
