Tire Installation and Wheel Nut Torque

Machines with 11L-14 Tires:

1. Install wheels with the valve stems toward the inside. Incorrect assembly can cause wheel nuts to loosen.

   Exceeding recommended tire pressure can damage baler frame.

   Whenever a wheel has been removed and installed, check wheel nut torque after 1 hour of operation and repeat until nuts maintain specified torque.


   E65913-UN-18JUN12

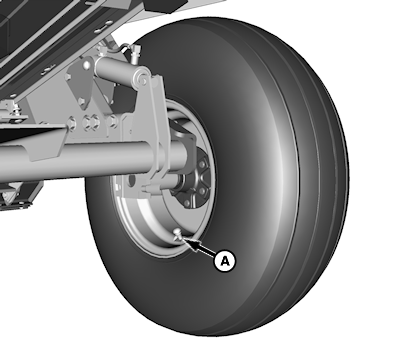

   11L-14 Tires Shown

   A - Valve Stem

   Install wheel with the valve stem (A) toward the inside. Fasten with six 1/2 in nuts.

---




2. Whenever a wheel has been removed and installed, check wheel nut torque after 1 hour of operation and repeat until nuts maintain specified torque. Wheel nuts must be tightened to specifications.

   Wheel Nuts	Torque	115 N·m (85 lb·ft)

3. Verify tire inflation pressure.

   Tires	kPa (bar) (psi)
   11L-14, 8 PR1	207 (2.1) (30)

4. Repeat procedure on the opposite side.

Machines with 14L-16.1 Tires:

1. Install wheels with the valve stems toward the outside. Incorrect assembly can cause wheel nuts to loosen.

   Exceeding recommended tire pressure can damage baler frame.

   Whenever a wheel has been removed and installed, check wheel nut torque after 1 hour of operation and repeat until nuts maintain specified torque.


   E63107-UN-13APR12

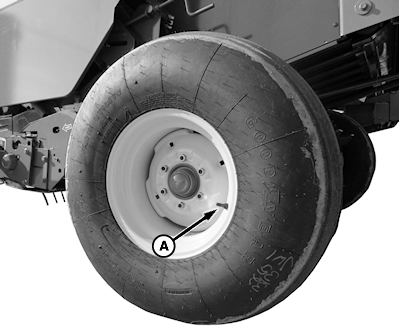

   14L x 16.1 Tires Shown

   A - Valve Stem

   Install wheel with the valve stem (A) toward the outside. Fasten with six 1/2 in nuts.

---




2. Whenever a wheel has been removed and installed, check wheel nut torque after 1 hour of operation and repeat until nuts maintain specified torque. Wheel nuts must be tightened to specifications.

   Wheel Nuts	Torque	115 N·m (85 lb·ft)

3. Verify tire inflation pressure.

   Tires	kPa (bar) (psi)
   14L x 16.1, 8 PR	207 (2.1) (30)

4. Repeat procedure on the opposite side.

Machines with 21.5L-16.1 Tires, MegaWide™ Plus, and MegaWide™ HC2 Pickups:

1. Install wheels with the valve stems toward the outside. Incorrect assembly can cause wheel nuts to loosen.

   Exceeding recommended tire pressure can damage baler frame.

   Whenever a wheel has been removed and installed, check wheel nut torque after 1 hour of operation and repeat until nuts maintain specified torque.


   E65244-UN-22MAY12

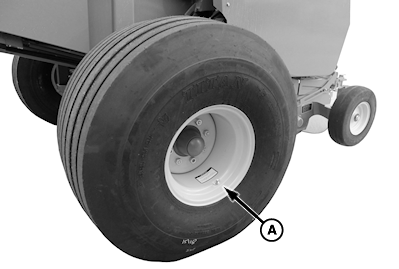

   21.5L x 16.1 Tires Shown

   A - Valve Stem

   Install wheel with the valve stem (A) toward the outside. Fasten with eight 5/8 in nuts.

---




2. Whenever a wheel has been removed and installed, check wheel nut torque after 1 hour of operation and repeat until nuts maintain specified torque. Wheel nuts must be tightened to specifications.

   Wheel Nuts	Torque	237 N·m (175 lb·ft)

3. Adjust tire inflation pressure.

   Tires	kPa (bar) (psi)
   21.5L x 16.1, 10 PR	103 (1.0) (15)

4. Repeat procedure on the opposite side.
