Connect Baler Wire Harness to Tractor (BaleTrak™ Pro or Plus System)

  1. E52435
    E52435-UN-16JUN03

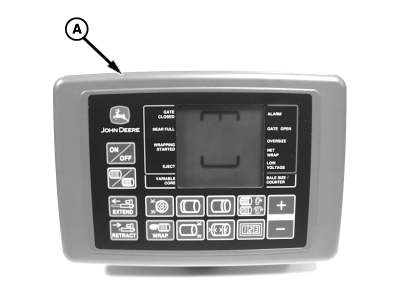

    BaleTrak™ Pro Monitor-Controller

    E84229
    E84229-UN-28AUG17

    BaleTrak™ Plus Monitor-Controller

    A - BaleTrak™ Pro or Plus Monitor-Controller

    Route baler wire harness into the tractor operator's platform or station.


  2. Connect baler wire harness to BaleTrak™ Pro or BaleTrak™ Plus monitor-controller (A) harness connectors. Line up the timing mark on connectors and tighten locking ring. Monitor-controller power plug is connected to the tractor convenience outlet.

BaleTrak is a trademark of Deere & Company

SF04007,0000EE1-19-20170906
