Adjust Pickup Height (MegaWide™ and Regular Pickups Only)

Operating with pickup teeth contacting the ground can cause pickup damage.

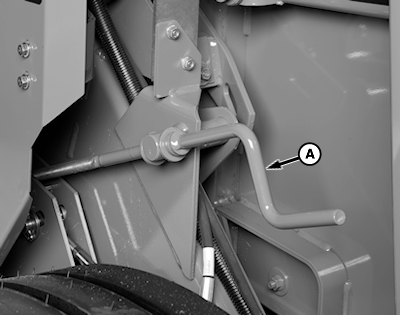

E69413-UN-12FEB13

A - Pickup Turn Crank

Adjust pickup teeth height to obtain a ground clearance of 25—50 mm (1—2 in) for an initial setting. Field conditions determine the final adjustment.

To adjust pickup height:

• Turn crank (A) clockwise to raise the pickup
• Turn crank (A) counterclockwise to lower the pickup

If the baler is equipped with a hydraulic pickup lift, the crank acts as the downstop controlling pickup operating height. This feature allows the pickup to return to the same operating height after raising and lowering hydraulically.

Always raise the pickup to the transport position when crossing ditches and moving from field to field.
